2m Corner Surface Mounted Aluminium Profile for Strips with Frosted Diffuser (cover)


Basic Info.

Model NO.
ALU-TW1919
Dimensions
W19mm X H19mm
Accessories
End Caps
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Color
Silver/White/Black/Ral
Material
6063 T3-T8 Aluminium Alloy
Max Flex Width
12 mm
Beam Angle
45 Degree
Product Name
2m Corner Surface Mounted Aluminium Profile
Keywords
Aluminium Housing
Keywords1
Flat Faced Corner" Aluminium Housing
Apply to
Dacoration
Diffuser Material
Poly Carbonate, Opal
Length
2meters, or Custom-Made
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week

Product Description

2M Corner Surface Mounted Aluminium Profile for Strips with Frosted diffuser (cover)

Features:

Suitable for 8mm / 10mm width Integral IP33 / IP65 Strip

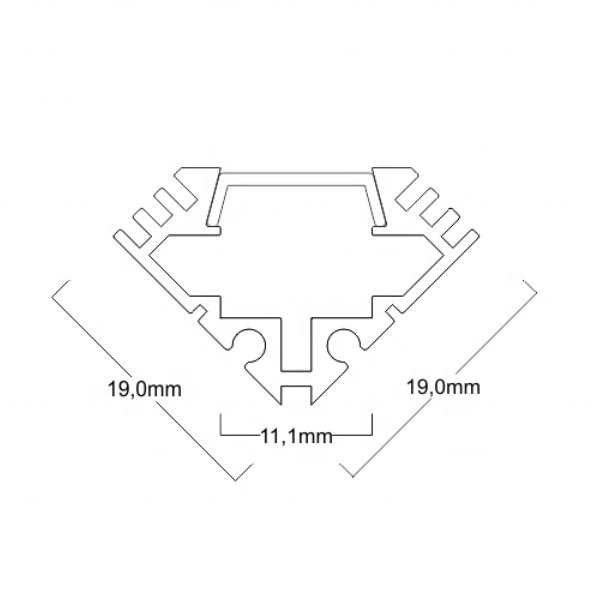

2000(L)x(90 degree) 19x19mm
This 2M Corner Surface Mounted Aluminium Profile (also known as Extrusion) is designed for any Integral IP33 and IP65 Flexible LED Strip range with 8mm and 10mm width. A frosted diffuser (cover) is included. Suitable for many applications such as lighting for furniture (bookcases, wardrobes), glass cabinets (jewellery), counter units (reception desks, bars) and decorative ceiling lighting (coving). Accessories including endcaps, endcaps with cable entry and mounting bracket (clips) are available to purchase separately.

Description:
Here we offer Aluminum LED profiles and diffuser lenses to help give your LED strip projects a more professional appearance. The aluminum channel or track keeps the strips hidden and provides a protective lens that shines an even light. Typically these LED strip housings are 2 meters long and come with a UV lens, end-caps, and mounting options.

Product Details:
Product nameALU1919 Alloy aluminum extrusion profile corner led aluminum profile for led strip
Material6063 Aluminum Alloy
Surface treatmentAnodized or Powder Coated
Length2meters, or custom-made
ColorSilver, White, Can be custom-made
SizeW19MM  X H19MM
AccessoriesPlastic end caps, clips
Diffuser materialPoly Carbonate, Opal

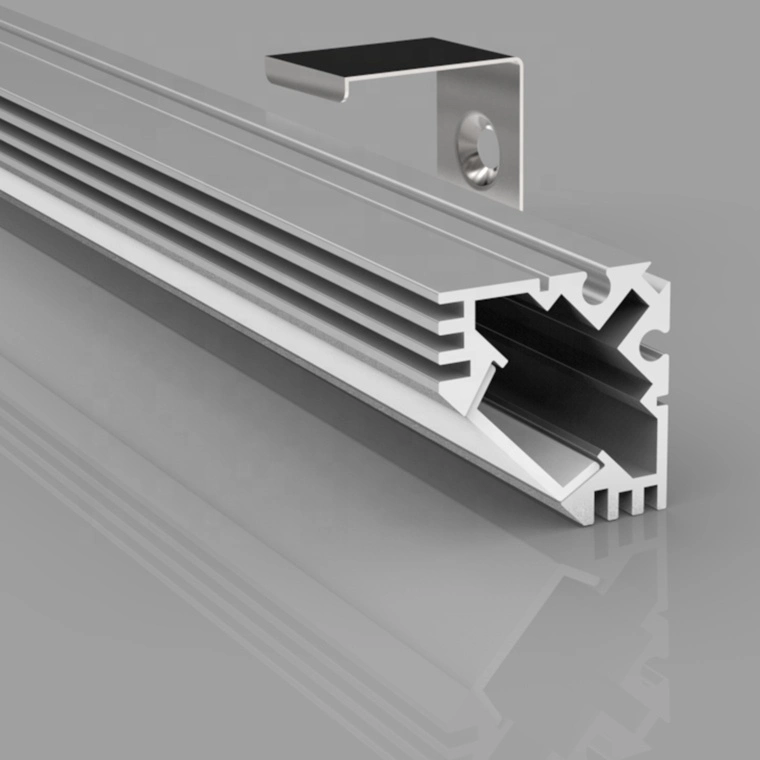

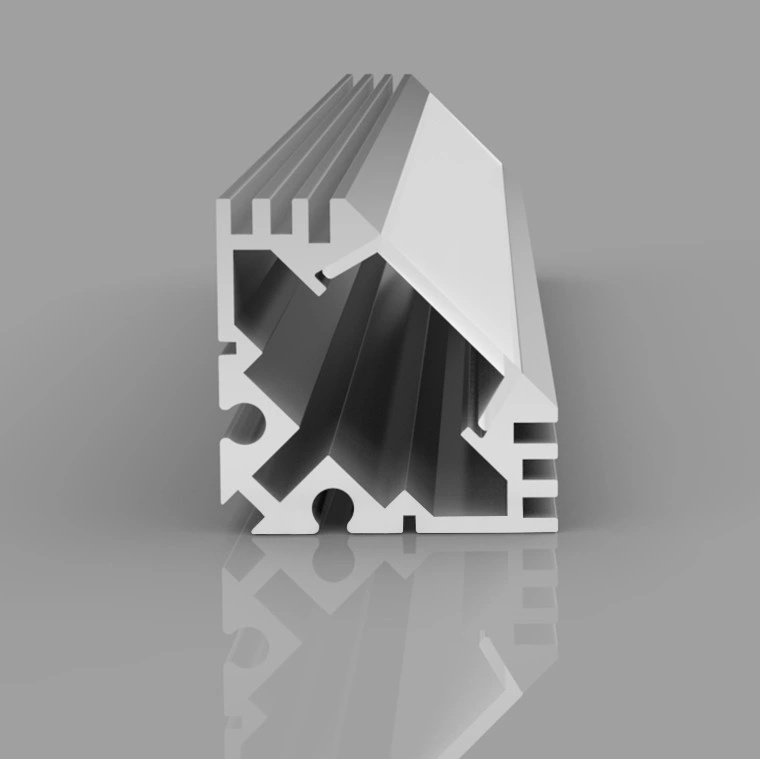

Detail Corner LED Aluminum Profile Channel Picture:
2m Corner Surface Mounted Aluminium Profile for Strips with Frosted Diffuser (cover)
2m Corner Surface Mounted Aluminium Profile for Strips with Frosted Diffuser (cover)
2m Corner Surface Mounted Aluminium Profile for Strips with Frosted Diffuser (cover)
2m Corner Surface Mounted Aluminium Profile for Strips with Frosted Diffuser (cover)

Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.

2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.

3. End cap
ABS material for anti-aging/Aluminum material/PC material

4. Clips
Stainless steel (201/304) clips for anti-rusting

5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.


FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters

Q2: Can we have different length ?
A2:  Yes, we have in house cutting facilities to prepare the length in any quantity

Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment

Q4. What is the material of diffuser ?
A4:  PC or PMMA

Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.

Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available

Q7: What is the delivery time ?
A7:  5-15 working days according to your order volume.

Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.


Why Ecoled Energy is your #1 choice:

Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.

High Quality
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.

Certified & Patented Products
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.

Technical Support
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
