Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear light Housing
Feature of the co-extrusion plastic linear light housing
1. Co-extrusion plastic tube Light housing+insert aluminum heat sink+ detachable end caps+clips
2. Separated 3pcs PCB.Middle size is 22.7mm ,2pcs sides model is 10mm
3. Length for options: 2FT 4FT 5FT 6FT 8FT or OEM
4. Adviced Power:20W 40W 60W 72W 100W
5. Recommendation Luminous Efficacy: 100-160lm/W
6. 30% Higher transmitance of PC diffuser output than the tradition injection tri-proof light housing
7. High lumen and power are available
8. Easy assembling and installation
9. Modern shape, nice looking
10. Matching solution:0-10V dimmable / Motion Sensor /Emergency
Description:
1.High transmittance uniform luminance, anti-yellowing, high UV index, warranty can reach 5 years.
2. Freezing resistance, not embitterment under -40°C
3 .Not transformation under high temperature 130°C,the test of flame retardant can pass 650°C.
4. We can provide the material reports for raw material, such as UL,CE, and other inspection certificates.Product Details:Product name | Custom LED Tri proof light fixture |
Material | 6063 Aluminum Alloy |
Surface treatment | Anodized or Powder Coated |
Length | 2meters, or custom-made |
Color | Silver, White, Can be custom-made |
Size | W76*H73mm |
Accessories | End caps, Clips |
Diffuser material | Poly Carbonate, Opal |
More LED Aluminum Channel Profile for LED Tri proof Light Photos:

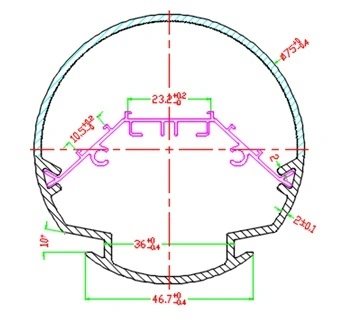

![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/13bd63c315a485d12ff0e914f414764d.jpg)
![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/1bb500911aa07703be2ecacc54793b57.jpg)
![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/28a56018480f04577c4c8dfc8f8085ea.jpg)
![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/0f32ad3600f3fe5cc6c030d7093f839d.jpg)
![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/8b93f71a00eb66ab5f49b9a6d83fe4b0.jpg)
![Newest Design 1200mm IP65 Plastic Extrusion Waterproof LED Linear Light Housing](/assets/images/ab4bd3d864dae57e387cab92104d8e6a.jpg)
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
