IP65 ABS PC Housing 5FT T8 Tri-Proof LED Tube Light Waterproof LED Linear Lights Fixture
Basic Info.
Model NO.
ALU-TW7385
Accessories
Endcaps, Mounting Clips, Screws
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Length
2FT 4FT 5FT or Customized
Material
ABS+PC, ABS Base + PC Cover
Max Flex Width
47.0mm(W)*1.0mm
Features
Dustproof, Waterproof, Corrosion-Proof
Product Name
Tri-Proof Light Fixture
Diffuser Material
PMMA/PC
Use for
Factory,Parking Lot,Train Station,etc
Structure
Integrated Al-PC Tube
Working Lifetime
50000 Hours
Keywords
IP68 LED Triproof Lighting Fixtures
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description

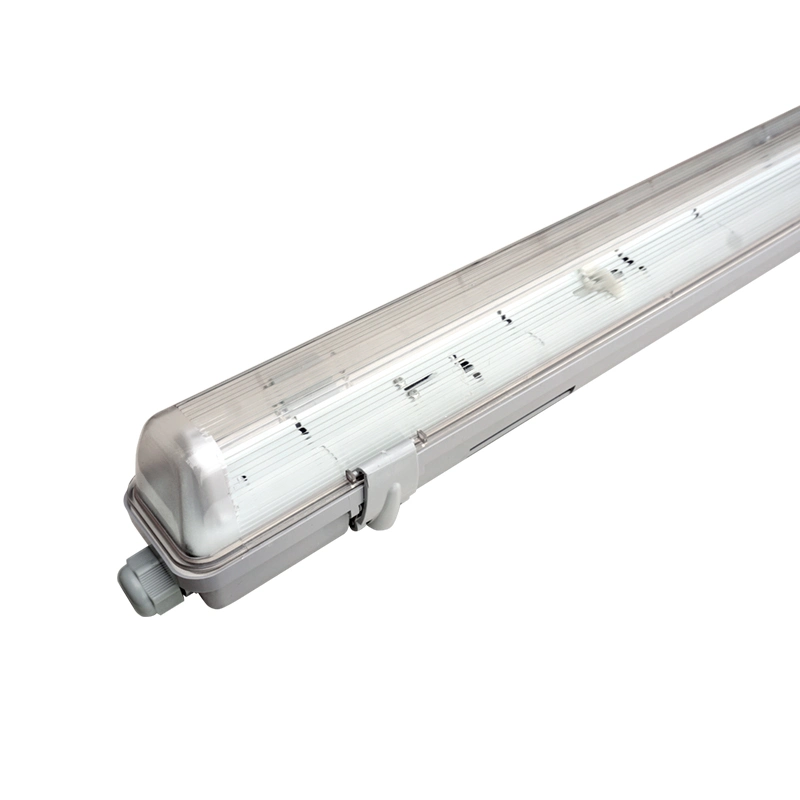

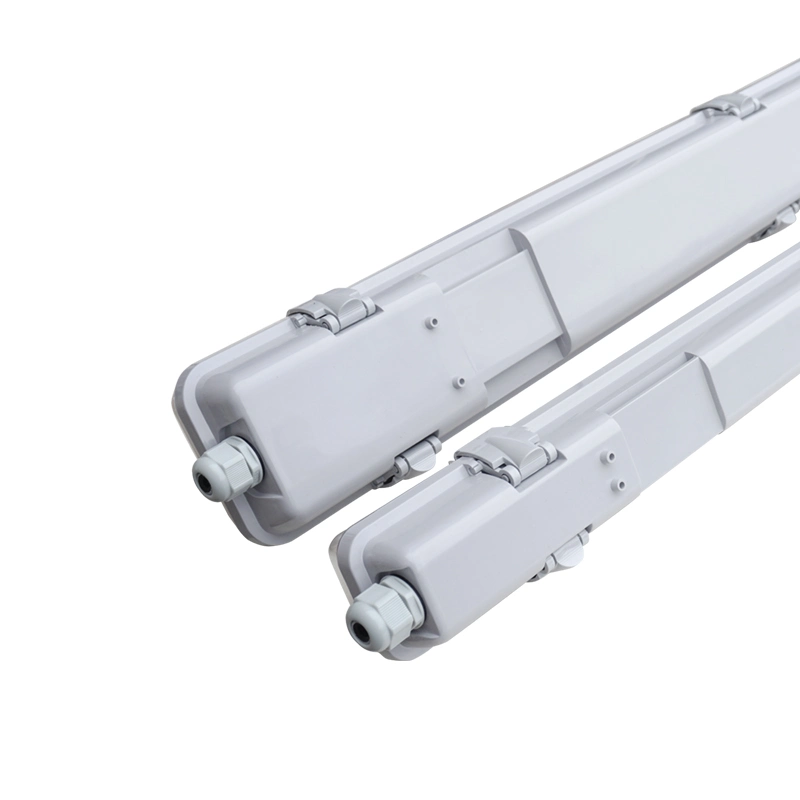

IP65 ABS PC Housing 5FT T8 Tri-Proof LED Tube Light Waterproof LED Linear Lights Fixture
Key Features:
1. Water proof, dust proof and corrosion proof design.
2. IP rating: IP65
3. Lampshade: Transparent with Stipes.
4. Configuration of the light fifixture with G13 lamp holder used for tube light with G13 connector
5. One sides wiring
6. Mono-tube lights
Components:
1. Lampshade / front cover ( Transparent or Diffused ).
2. Inner metal base.
3. Sealing strip.
4. G13 holder ( With cables attached on the inner metal base ).
5. Water-proof connector (M20).
6. Rear housing.
7. Plastic clips for locking front and rear housing.
8. Stainless steel clips for fifixing on the ceiling.
1. Lampshade / front cover ( Transparent or Diffused ).
2. Inner metal base.
3. Sealing strip.
4. G13 holder ( With cables attached on the inner metal base ).
5. Water-proof connector (M20).
6. Rear housing.
7. Plastic clips for locking front and rear housing.
8. Stainless steel clips for fifixing on the ceiling.
Raw Material:
1. PC for Lampshade; PC+ABS for rear housing and clips
2. Metal for inner base plate
3. PC+ABS for plastic clips
4. Stainless steel for metal clips
5. Seal component: Rubber
6. Water-proof connector: PA66
2. Metal for inner base plate
3. PC+ABS for plastic clips
4. Stainless steel for metal clips
5. Seal component: Rubber
6. Water-proof connector: PA66
Transmittance:
1. Upper 90% for transparent lampshade
2. Up to 82% for diffused lampshade
| Product name | Custom LED Tri proof light fixture |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |
| Size | W73*H85mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |
More LED Aluminum Channel Profile for LED Tri proof Light Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.

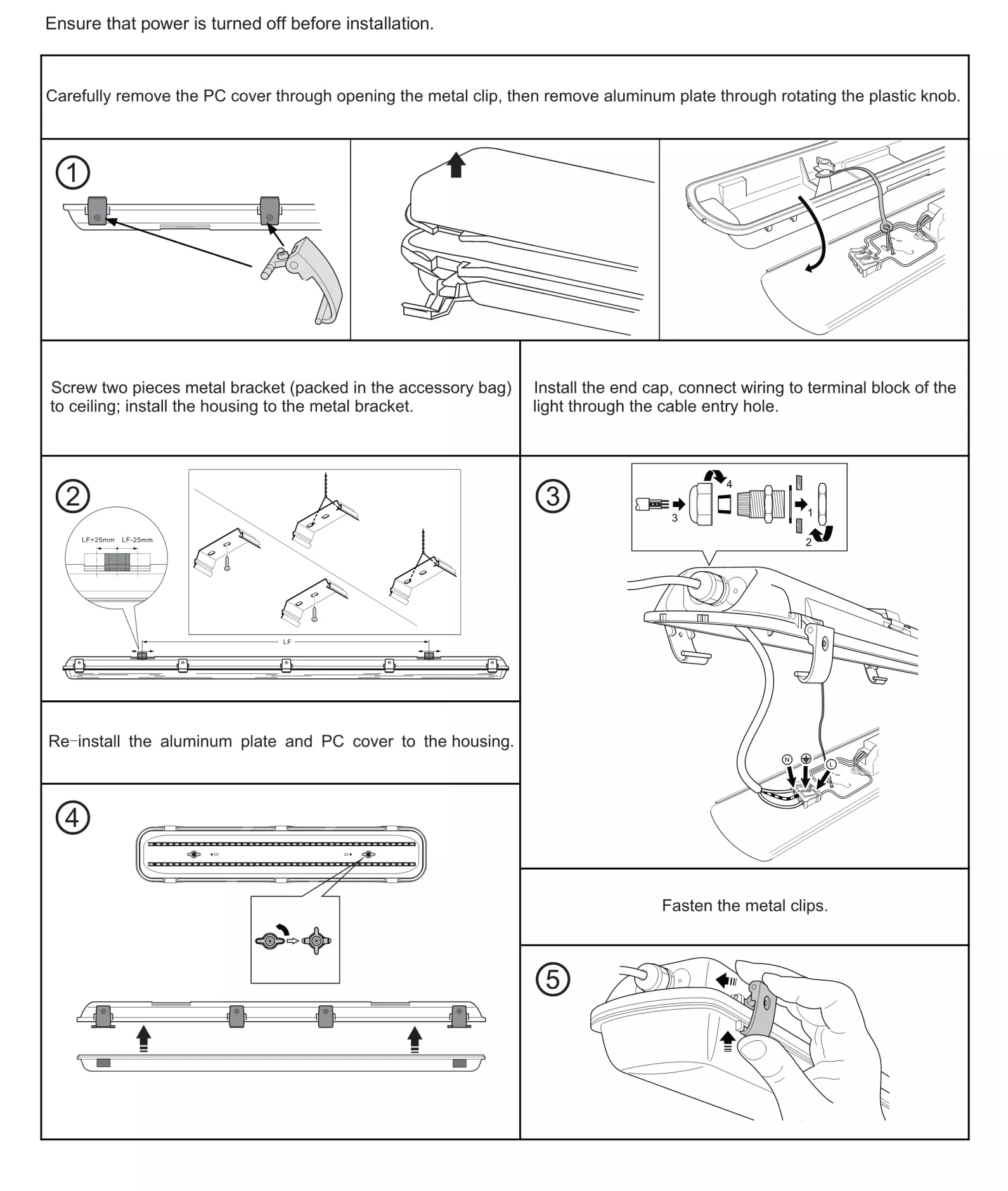

Installation Instructions:
Application
Industrial lighting: factory, warehouse, Mining area.
Commercial lighting: parking lots.
Public lighting: Metro station, Train station, Airport terminal, Tunnels.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
