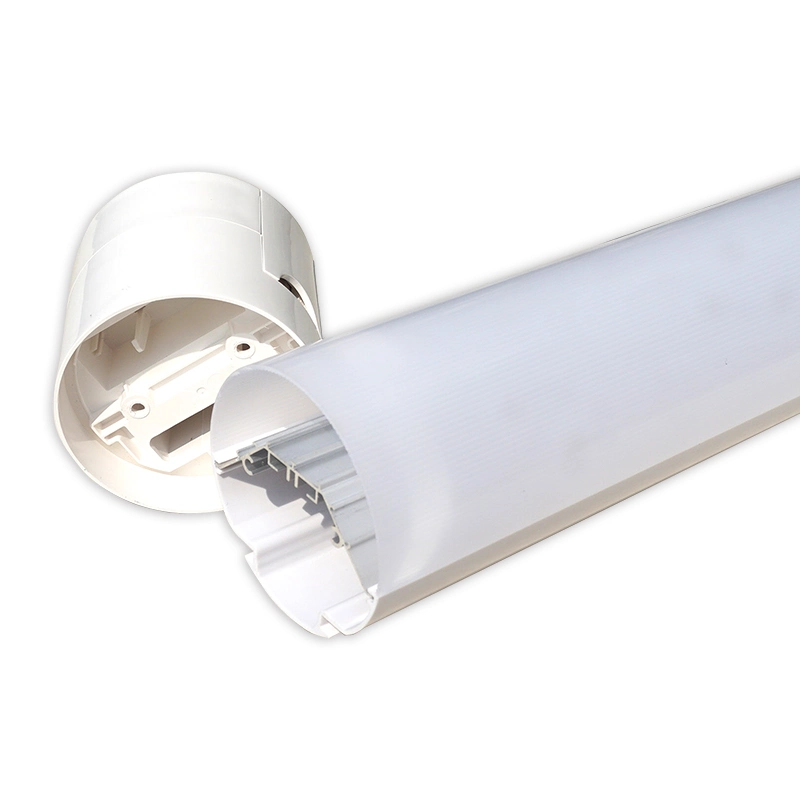

Waterproof IP65 Triproof LED Light Fixtures Plastic PC Tube Light Housing
Basic Info.
Model NO.
T20
Accessories
Endcaps, Mounting Clips, Screws
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Length
2FT 4FT 5FT or Customized
Material
6063 T3-T8 Aluminium Alloy
Max Flex Width
47.0mm(W)*1.0mm
Components
Al Heatsink,PC Cover,End Cap
Product Name
Tri-Proof LED Light Fixture
Type
IP68 LED Triproof Lighting Fixtures
PC Cover Color
Milky or Clear with Stripes
Structure
Integrated Al-PC Tube
Beam Angle
140 Degree
Keywords
IP68 LED Triproof Lighting Fixtures
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description
Waterproof IP65 Triproof LED Light Fixtures Plastic PC Tube Light Housing
Advantages:
1.Circular shell design, make the product has a more linear sense.
2.Thickened PC material, can make the product withstand high temperature and low temperature, high pressure, high strength, high impact performance.
3.The utility model adopts a detachable segmented lamp head design, which is convenient for the professional workers to install the electric wires and debug the color temperature section, and improves the safety of the electric wire joint.
4.A new breathing apparatus is added on the lamp head to ensure the lamp body temperature in operation and to ensure the lifespan of the product.
5.Stainless Steel 303 material is selected for installation of fixing parts.
1.Circular shell design, make the product has a more linear sense.
2.Thickened PC material, can make the product withstand high temperature and low temperature, high pressure, high strength, high impact performance.
3.The utility model adopts a detachable segmented lamp head design, which is convenient for the professional workers to install the electric wires and debug the color temperature section, and improves the safety of the electric wire joint.
4.A new breathing apparatus is added on the lamp head to ensure the lamp body temperature in operation and to ensure the lifespan of the product.
5.Stainless Steel 303 material is selected for installation of fixing parts.
Description:
1.Excellent heat dissipation depending on aluminum housing.
2.Cylinder-shaped design to be suitable the round concept furnishing style.
3.Special end cap structure or convenient connection.
4.Anti-Yellow,Anti-UV,Anti-corrosion.
5.Easy assembling and installation
6.Energy-saving and environmentally friendly.
7.Operating Temperature: -25°C ~ +55°C.
8.30% Higher transmitance of PC diffuser output than the traditional injection tri-proof light housing.
9.Multiple control optional:On/Off,Sensor,Dimming,DALI.
Product Details:
P.No. | ALU-TW20 | |||
Material | Co-extrusion plastic tube+insert AL heatsink | |||
Transmittance | 80%-88% | |||
IP Rating | IP68(waterproof,dustproof,corrosion-proof) | |||
PCB Size | Separated 3pcs PCB Middle size is 22.7mm,2pcs sides model is 10mm. | |||
Certification | RoHS,CE | |||
Length Option | 2ft 4ft 5ft or customized | |||
Cover Color | Milky+White | |||
Components | inner AL heatsink+Full PC cover+End caps+Waterproof silicone parts+Mounting clips +Waterproof cable+Rubber plug | |||
Installation | Ceiling Mounting fix or Suspension | |||
Life span | 50000 hours | |||
Warranty | 5 years | |||
Power | 2ft 20W,4ft 40W,5ft 60W | |||
More LED Aluminum Channel Profile for LED Tri proof Light Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
