Waterproof 1200mm IP65 LED Linear Light LED Outdoor Tri-Proof Light Housing for Industrial Lighting
Basic Info.
Model NO.
ALU-TW15X
Application
Door & Window, Heat Sink, Decoration
Surface Treatment
Anodized or Powder Coated
IP Rating
IP68
Transmittance
80%-88%
Accessories
Endcaps, Mounting Clips, Screws
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Length
2FT 4FT 5FT or Customized
Material
6063 T3-T8 Aluminium Alloy
Max Flex Width
67.0mm(W)*1.0mm(Thickness)
Craft
Metal Housing Tri-Proof Light
Product Name
LED Waterproof Light Accessories
Diffuser Material
PMMA/PC

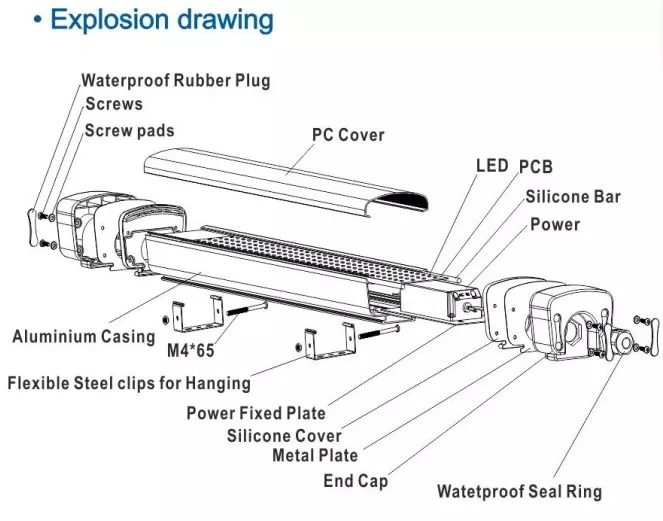

Component
Al Heatsink+PC Cover+End Caps+Waterproof Silicone
Structure
Integrated Al-PC Tube
Power Consumption
Less Than 14.4W/M
Keywords
IP68 LED Triproof Lighting Fixtures
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Packaging & Delivery
Package size per unit product
1250.00cm * 90.00cm * 80.00cm
Gross weight per unit product
6.000kg
Product Description
Waterproof 1200mm IP65 LED Linear Light LED Outdoor Tri-Proof Light Housing for Industrial Lighting
1.High transmittance uniform luminance, anti-yellowing, high UV index, warranty can reach 5 years.
2. Freezing resistance, not embitterment under -40°C
3 .Not transformation under high temperature 130°C,the test of flame retardant can pass 650°C.4. We can provide the material reports for raw material, such as UL,CE, and other inspection certificates.
Description:
Here we offer Aluminum LED profiles and diffuser lenses to help give your LED strip projects a more professional appearance. The aluminum channel or track keeps the strips hidden and provides a protective lens that shines an even light. Typically these LED strip housings are 2 meters long and come with a UV lens, end-caps, and mounting options.
Product Details:
| Product name | Custom LED Tri proof light fixture |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |

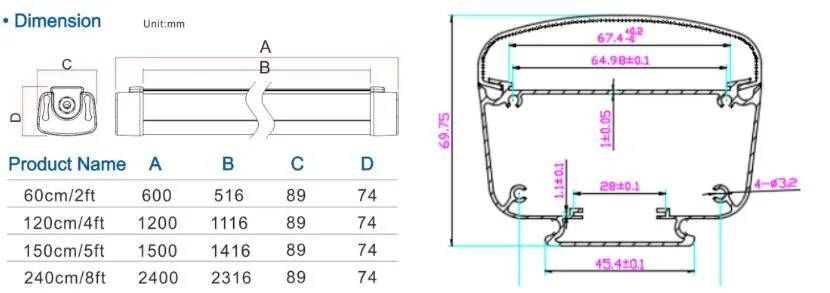

| Size | W67*H69mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |

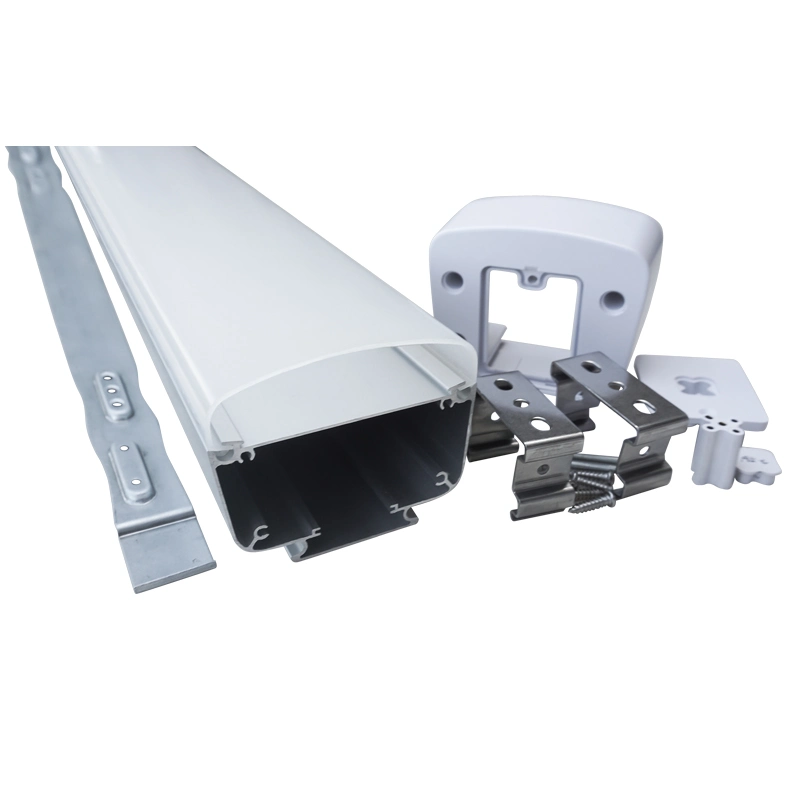

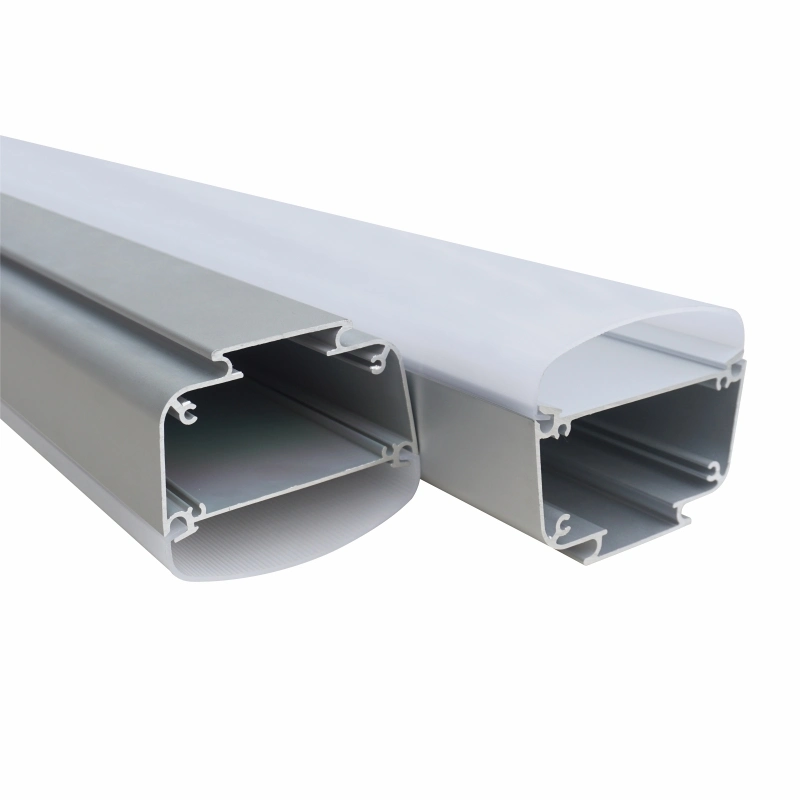

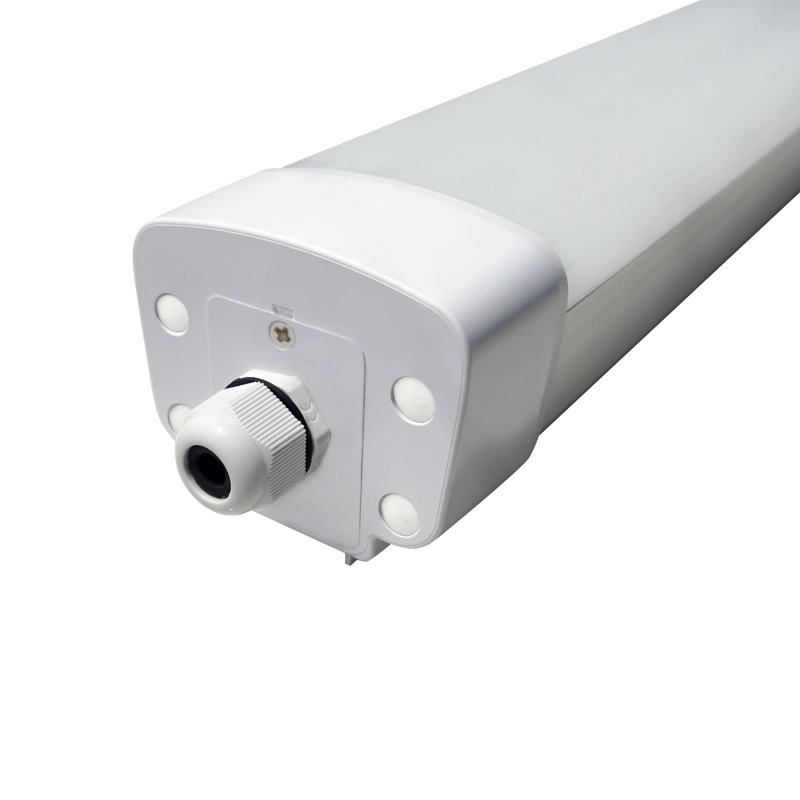

More LED Aluminum Channel Profile for LED Tri proof Light Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
High Quality
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.
Certified & Patented Products
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.
Technical Support
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
