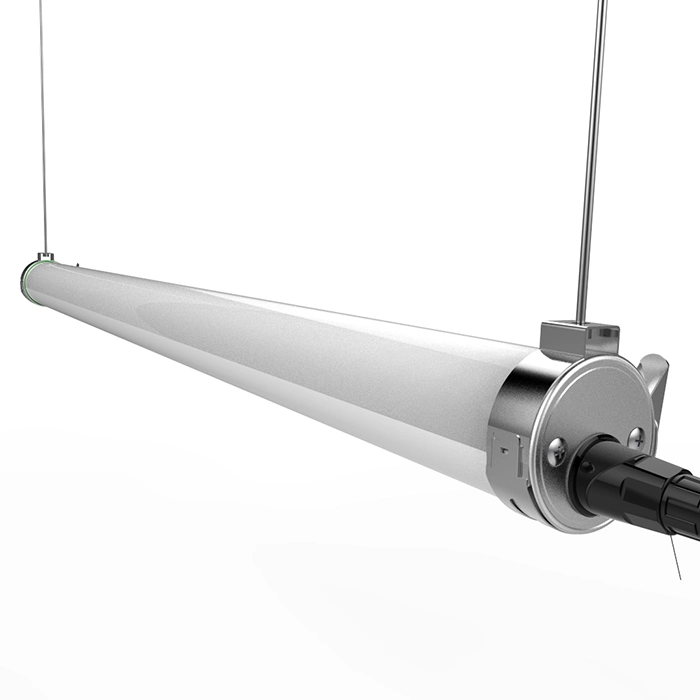

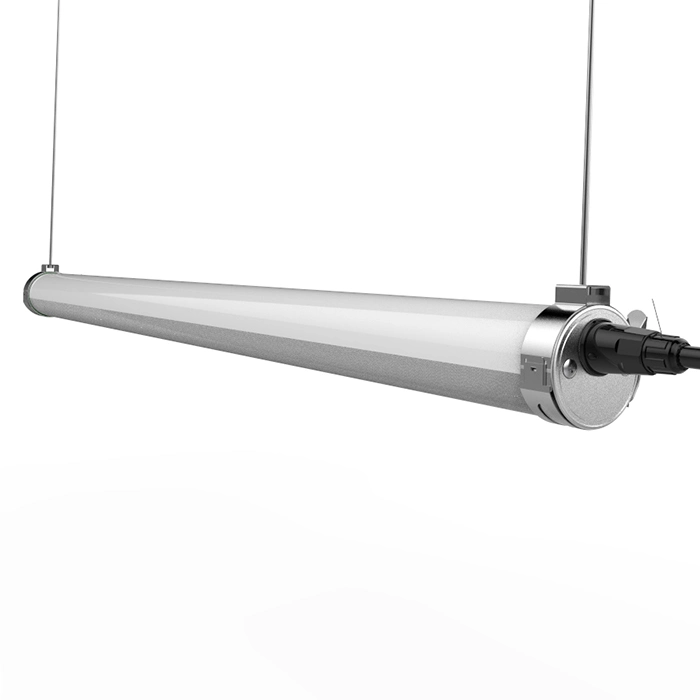

36W 120cm Waterproof Chicken Shed Lighting Poultry Lighting IP69K LED Tri Proof Light Fixture
Basic Info.
Model NO.
TW-7575
Transmittance
80%-88%
Accessories
Al Heatsink+PC Cover+End Caps+Mounting Clips
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Length
2FT 4FT 5FT or Customized
Material
6063 T3-T8 Aluminium Alloy
Craft
Metal Housing Tri-Proof Light
Product Name
LED Waterproof Light Accessories
Diffuser Material
PMMA/PC
Component
Al Heatsink+PC Cover+End Caps+Waterproof Silicone
Structure
Integrated Al-PC Tube
Power Consumption
20-60W
Keywords
IP68 LED Triproof Lighting Fixtures
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description
36W 120cm waterproof chicken shed lighting poultry lighting ip69k led tri proof light Fixture
1.High transmittance uniform luminance, anti-yellowing, high UV index, warranty can reach 5 years.
2. Freezing resistance, not embitterment under -40°C
3 .Not transformation under high temperature 130°C,the test of flame retardant can pass 650°C.4. We can provide the material reports for raw material, such as UL,CE, and other inspection certificates.
Key Features:
1. Excellent heat dissipation depending on aluminum housing
2. Linakble design makes the lamps connect each other from end to end.
3. Easy assembling and installation,freely connected,both hanging and ceiling installaion all available.
4. Ideal altematives of T8 afluorescent lamps.
3. Easy assembling and installation,freely connected,both hanging and ceiling installaion all available.
4. Ideal altematives of T8 afluorescent lamps.
5. Easy maintenace and economical replacement.
6. AL 6063-T5 as raw material is full of the whole lamp base,excellent heat dissipation and long lifespan.
Special Subject Presentation:
1. T8 LED Batten is an led lighting product created with crafsman spirit,which use of metal base and luminous tube design as a whole and special dedicated to replace T8 fluorescent lamps and led tube,it eliminateds the customer's trouble when installing the T8 tubes with base.
2. T8 LED Batten adopts metal base and luminous tube which can be freely disaddembled and integrated ,which bring the economical maintenance costs to the customers,when power is broken,individually changed power,luminous tube can be replaced with a separate illuminator.And the base never need to change,greatly reducing the customer cost;also saves money compared to led tubes.
3. This product is our company petented product.

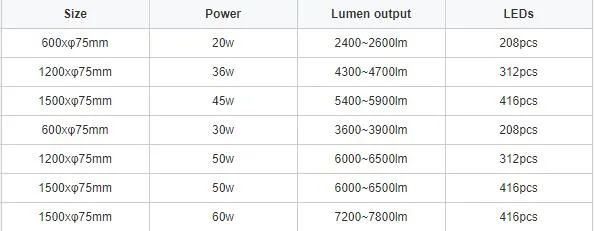

Product Details:
Material | PC+AL | |||
Transmittance | 80%-88% | |||
IP Rating | IP20 | |||
Certification | RoHS,CE | |||
Length Option | 4FT | |||
Color | Milky | |||
Components | AL heatsink+PC cover+End caps+Mounting clips | |||
Installation | Ceiling Mounted or Suspended | |||
Lifespan | 50000 hours | |||
Warranty | 5 years | |||
Power | 20W-60W | |||

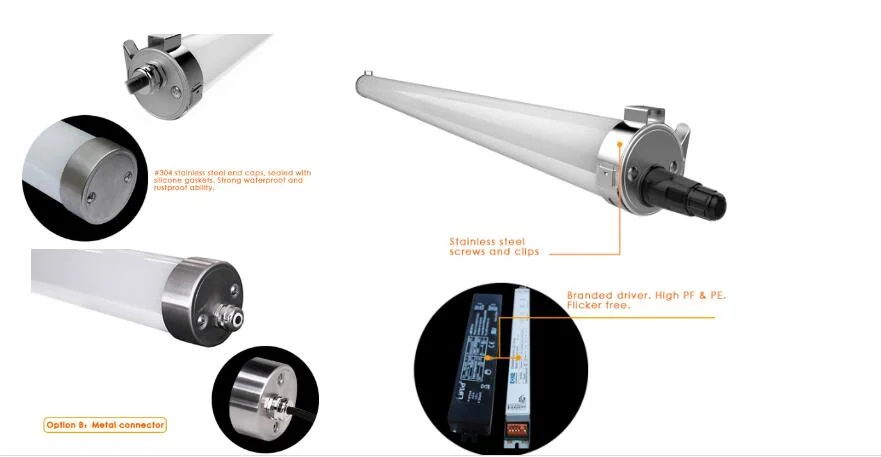

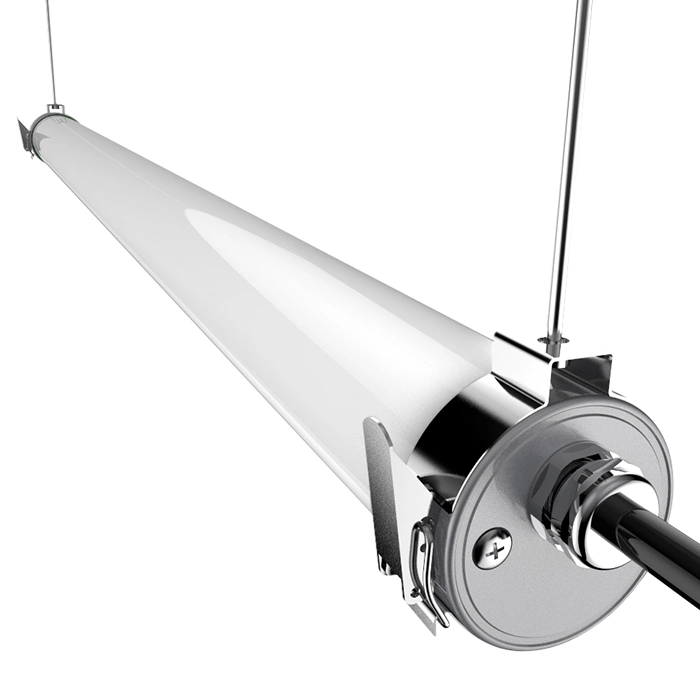

More LED Aluminum Channel Profile for LED Tri proof Light Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
