Double Layer Driver Put in 40mm Width LED Linear Lighting Aluminum LED Profile
Basic Info.
Model NO.
ALU-TW5070
Application
Door & Window, Heat Sink, Decoration
Surface Treatment
Anodized or Powder Coated
Installation
Recessed or Wall Recessed Luminaire
Dimensions

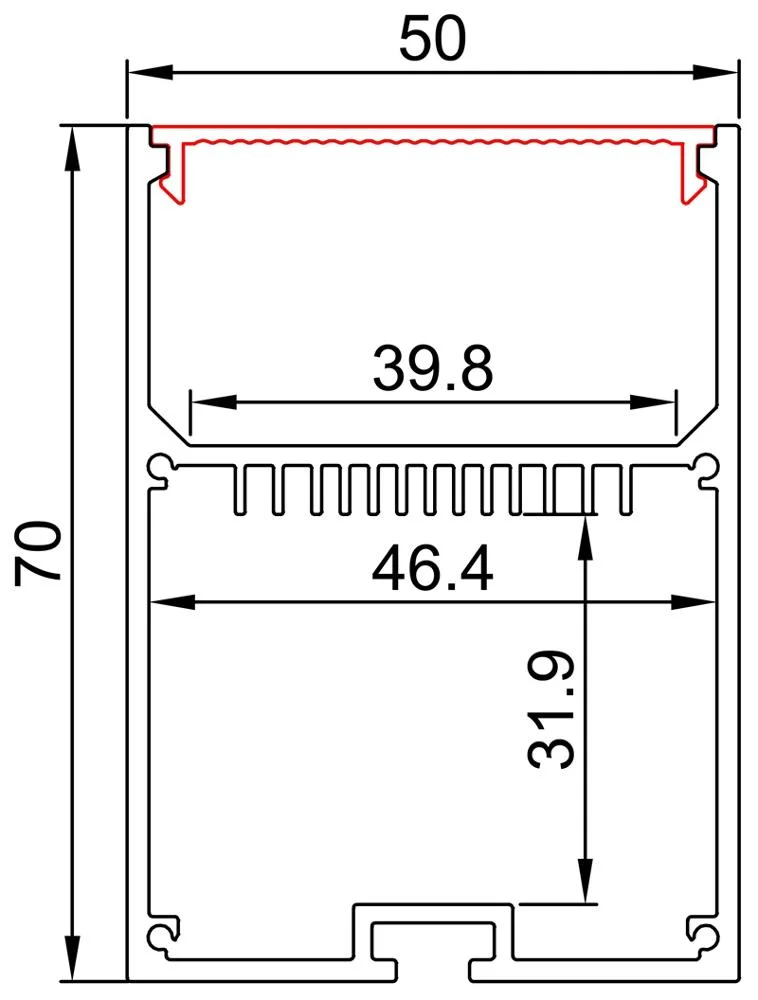

W50*H70mm
Accessories
Endcap, Mounting Clip
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Color
Silver/White/Black/Ral
Material
6063 T3-T8 Aluminium Alloy
Max Flex Width
40mm
Pitch for Diffusion
240 LED
Product Name
Recessed LED Profile Channel
Keywords
Aluminium LED Profiles
Type
OEM Aluminum Extrusions Profiles
IP Rating
IP20
LED Aluminum Channel Applications
R Commercial and Residential Lighting Applications
Channel
Aluminum Extrusions
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Packaging & Delivery
Package size per unit product
305.00cm * 18.00cm * 16.00cm
Gross weight per unit product
2.000kg
Product Description
Double layer driver put in 40mm width led linear lighting aluminum led profile
Description:

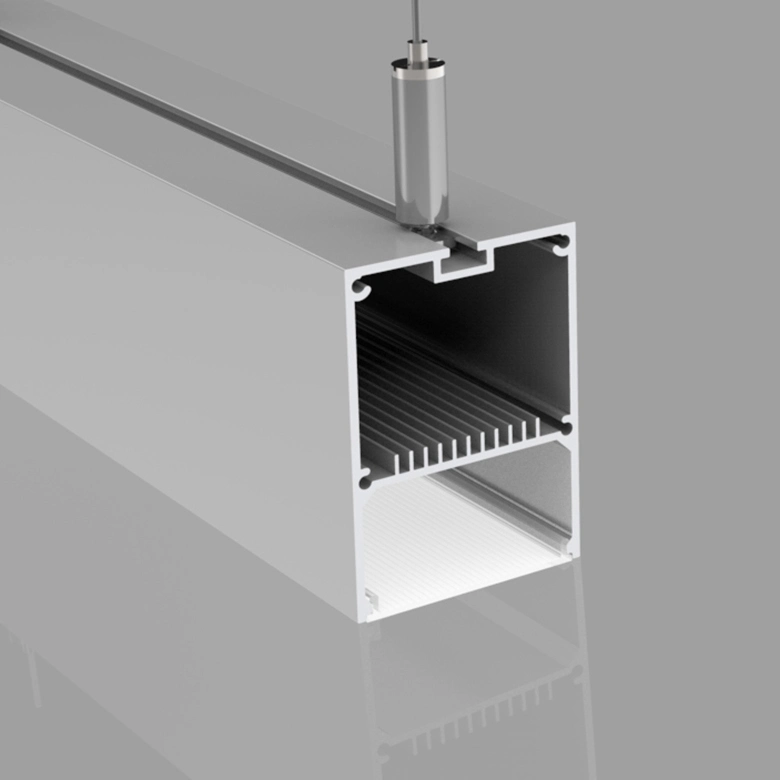

The LED aluminum extrusion profile is a rectangular LED channel which can be used for suspended lighting or surface mounted to create your desired linear lighting effects. The finish is completely smooth which gives the profile a sleek appearance and provides a modern option for Linear Pendant lighting. The opal cover diffuses the LED strip lighting so that the illumination is even with no dotting. The aluminum channel provides substantial heat-management, essential to ensure the performance and longevity of high-powered lighting. The profile can be ordered along with the suspension kit chains and the height adjusted as required. Surface mounted applications can range from LED Light lines around buildings, inside hotel passages and to much more!
Product Details:

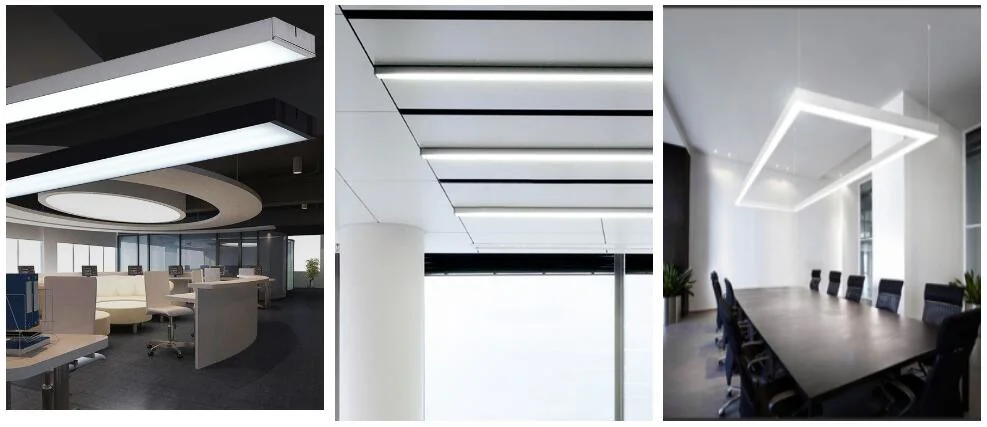

More Rectangular LED Linear Pendant Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.

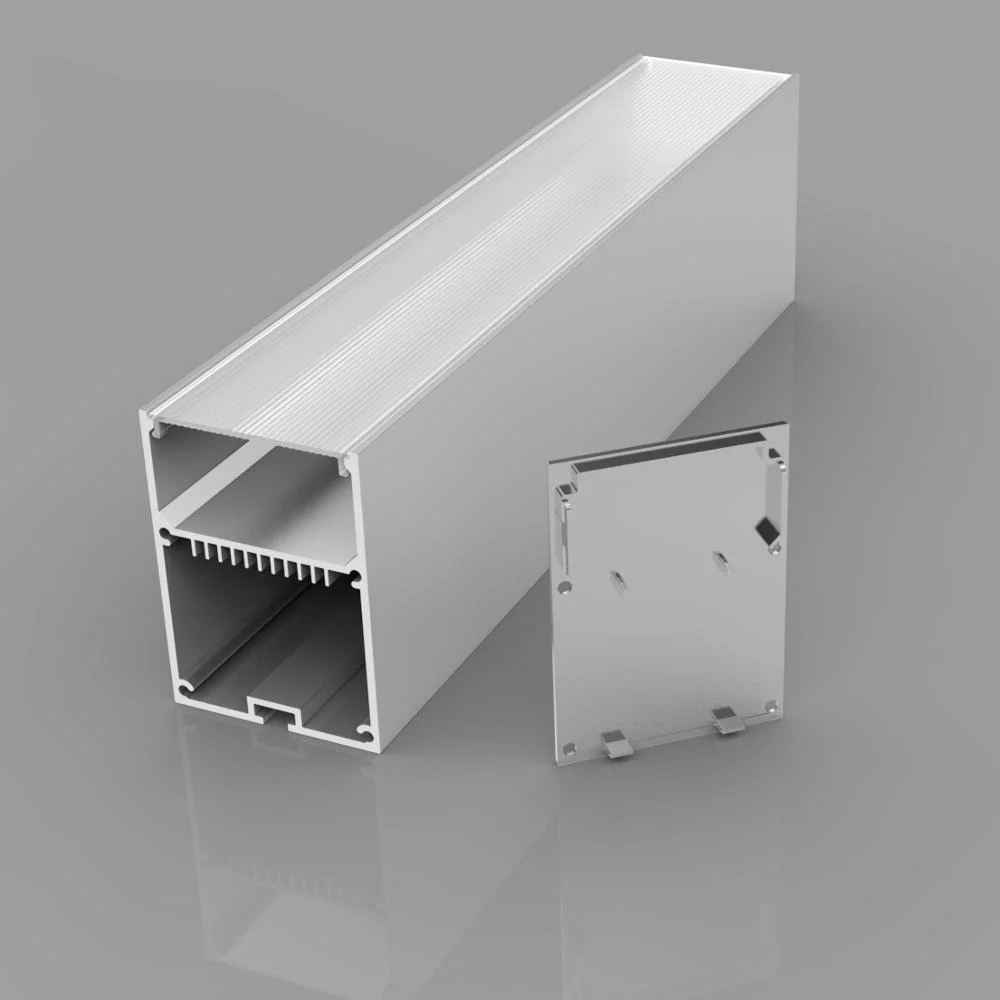

3. End cap
ABS material for anti-aging/Aluminum material/PC material

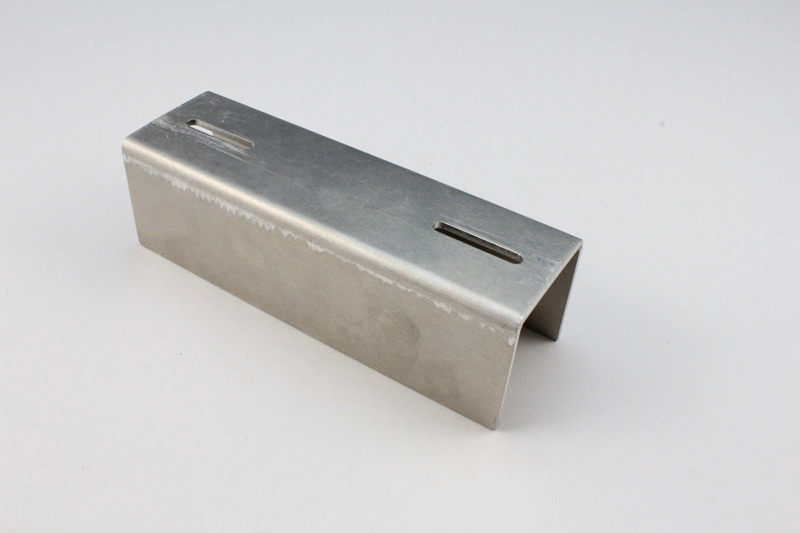

4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
Description:
The LED aluminum extrusion profile is a rectangular LED channel which can be used for suspended lighting or surface mounted to create your desired linear lighting effects. The finish is completely smooth which gives the profile a sleek appearance and provides a modern option for Linear Pendant lighting. The opal cover diffuses the LED strip lighting so that the illumination is even with no dotting. The aluminum channel provides substantial heat-management, essential to ensure the performance and longevity of high-powered lighting. The profile can be ordered along with the suspension kit chains and the height adjusted as required. Surface mounted applications can range from LED Light lines around buildings, inside hotel passages and to much more!
Product Details:
| Product name | W50*H70mm Luminaire Aluminium Profile Channel For LED Strip with Flat PC cover, clips Recessed mounting for pedant linear lighting installation |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |
| Size | 50x70mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |
More Rectangular LED Linear Pendant Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
