Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65


Basic Info.

Model NO.
TW-9283
Transmittance
80%-88%
Accessories
Endcaps, Mounting Clips, Screws
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Dimension
92*83mm
Material
6063 T3-T8 Aluminium Alloy
Applications
Workshop,Factory,Parking Lot,Supermarket,Corridor
Craft
Co-Extrusion
Product Name
LED Triproof Lighting Housing
Diffuser Material
PMMA/PC
LED Strip
5050/3528/2835/5730 Are Available
Structure
Integrated Al-PC Tube
Feature
IP65 Water-Proof/Dust-Proof/Explosion-Proof
Keywords
IP65 Linear Light Fixture
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week

Product Description

IP65 40w led tri-proof light fixture, waterproof tube light housing for factory lighting


1.High transmittance uniform luminance, anti-yellowing, high UV index, warranty can reach 5 years.
2. Freezing resistance, not embitterment under -40°C
3 .Not transformation under high temperature 130°C,the test of flame retardant can pass 650°C.
4. We can provide the material reports for raw material, such as UL,CE, and other inspection certificates.

Description:
Here we offer Aluminum LED profiles and diffuser lenses to help give your LED strip projects a more professional appearance. The aluminum channel or track keeps the strips hidden and provides a protective lens that shines an even light. Typically these LED strip housings are 2 meters long and come with a UV lens, end-caps, and mounting options.

Product Details:
Product nameIP65 40w led tri-proof light fixture, waterproof tube light housing for factory lighting
Material6063 Aluminum Alloy
Surface treatmentAnodized or Powder Coated
Length2meters, or custom-made
ColorSilver, White, Can be custom-made
SizeW68*H64mm
AccessoriesEnd caps, Clips
Diffuser materialPoly Carbonate, Opal

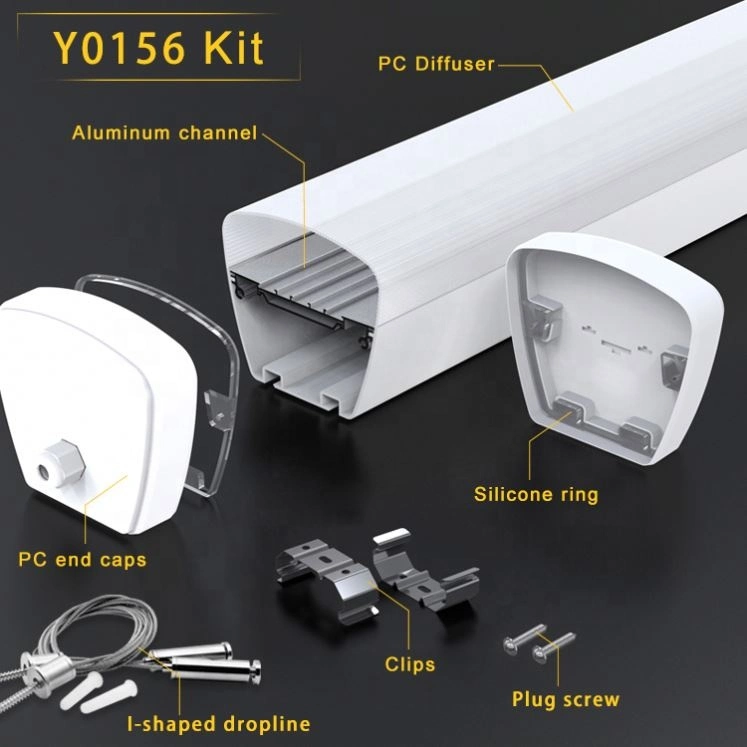

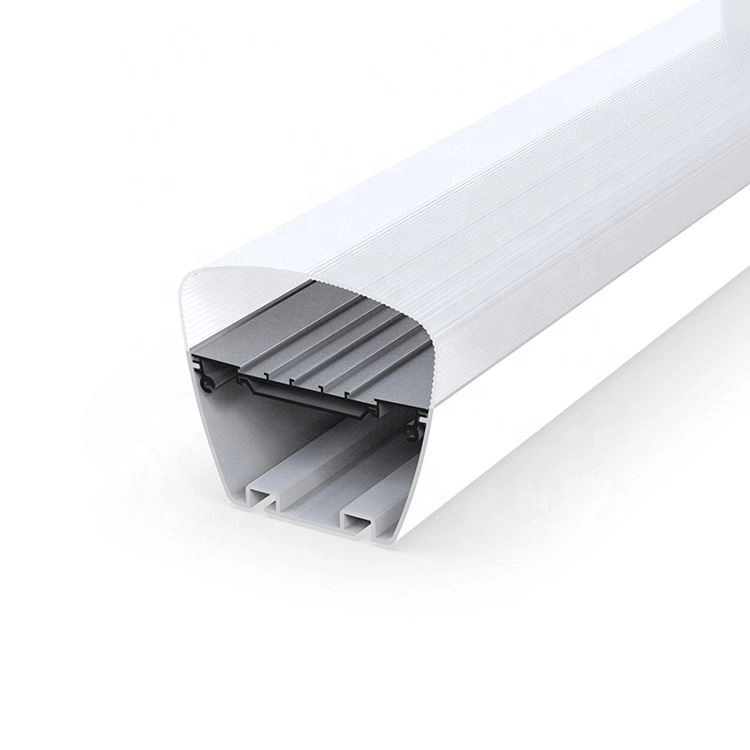

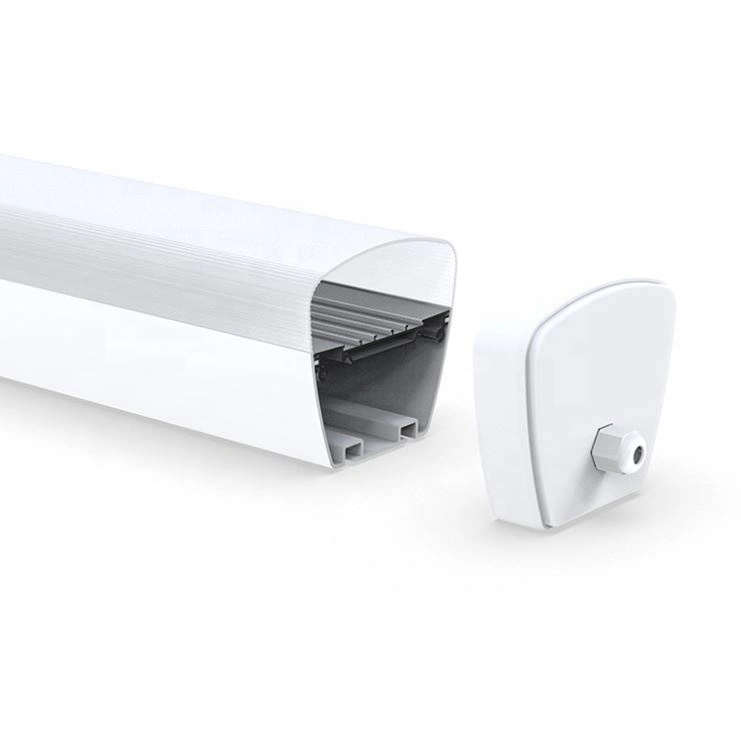

More LED Aluminum Channel Profile for LED Tri proof Light Photos:
Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65
Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65
Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65

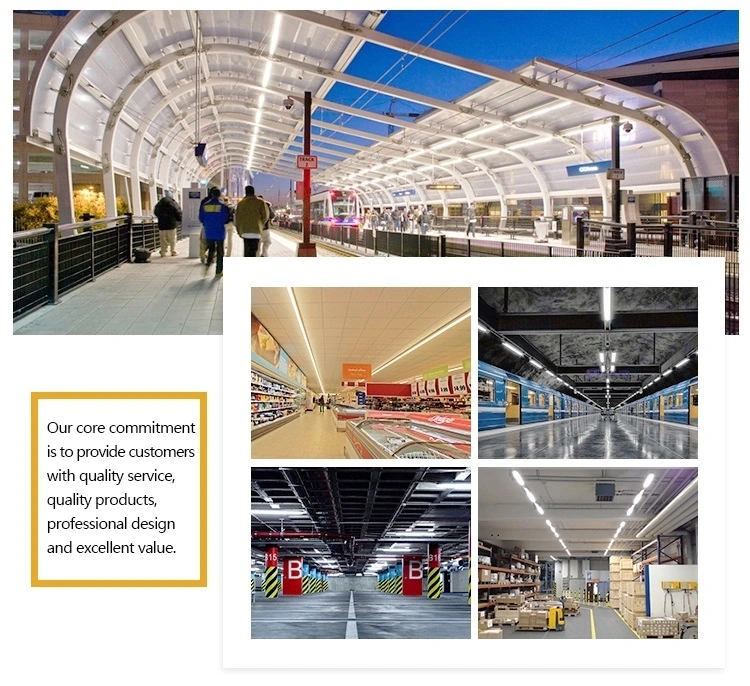

Applications:
Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65
Cleanroom LED Lighting Fittings &Tri-Proof Tube Linear Batten Fixture Housing&IP65

Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.

2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.

3. End cap
ABS material for anti-aging/Aluminum material/PC material

4. Clips
Stainless steel (201/304) clips for anti-rusting

5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.


FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters

Q2: Can we have different length ?
A2:  Yes, we have in house cutting facilities to prepare the length in any quantity

Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment

Q4. What is the material of diffuser ?
A4:  PC or PMMA

Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.

Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available

Q7: What is the delivery time ?
A7:  5-15 working days according to your order volume.

Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.


Why Ecoled Energy is your #1 choice:

Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.

High Quality
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.

Certified & Patented Products
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.

Technical Support
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
