16*16mm Top Grade Shaped Aluminum Extrusion Aluminum Profile LED Strip Decoration Light
Basic Info.
Model NO.
TW-1616
Dimensions
L2000*W16*H16mm
Accessories
Endcap, Mounting Clip
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Color
Silver/White/Black/Ral
Material
6063 T3-T8 Aluminium Alloy
Suitable for LED Strip
10.5mm or Less Than 10.5mm
Bespoke Lengths
Can Be Cut & Supplied in Bespoke Lengths
Product Name
1616 Aluminum LED Strip Channel - Surface Mount Le
Keywords
1616 Aluminum LED Strip Channel Surface Mount LED
Item
Corner Surface Mounted Aluminium Profile
Keywords2
Aluminium Corner Profile
Alloy or Not
Is Alloy
UL Fammability
UL94V-2
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description

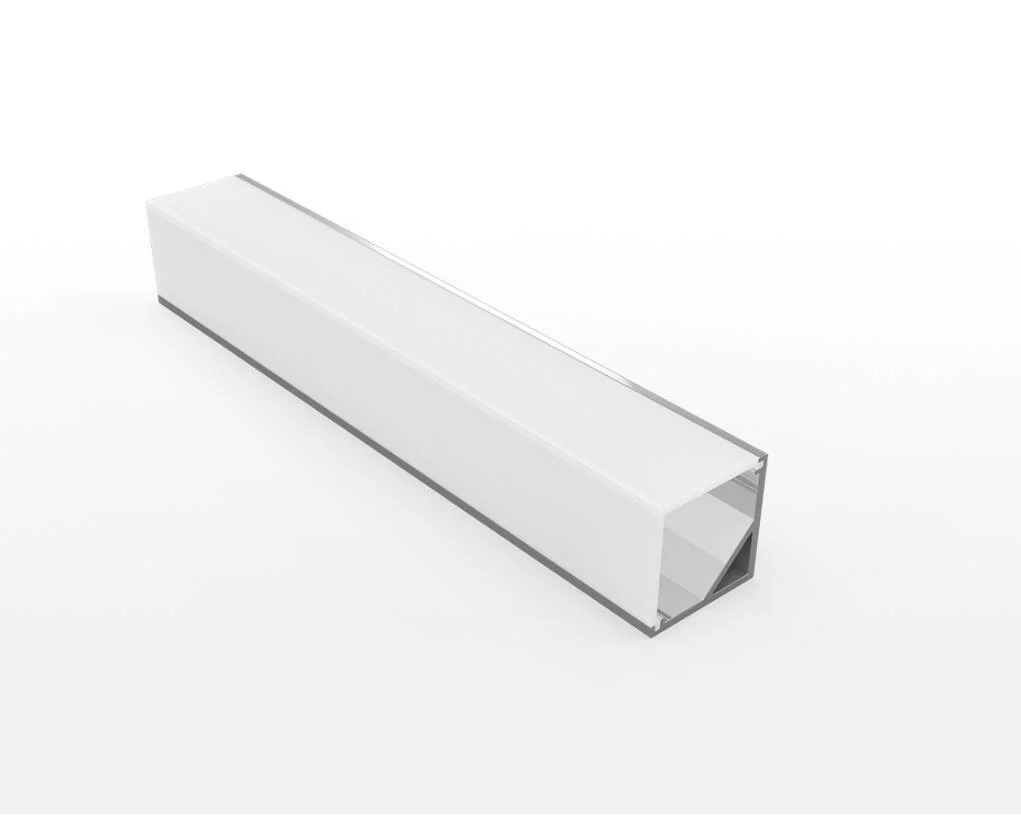

1616 Aluminum LED Strip Channel - Surface Mount LED Extrusion
Features:

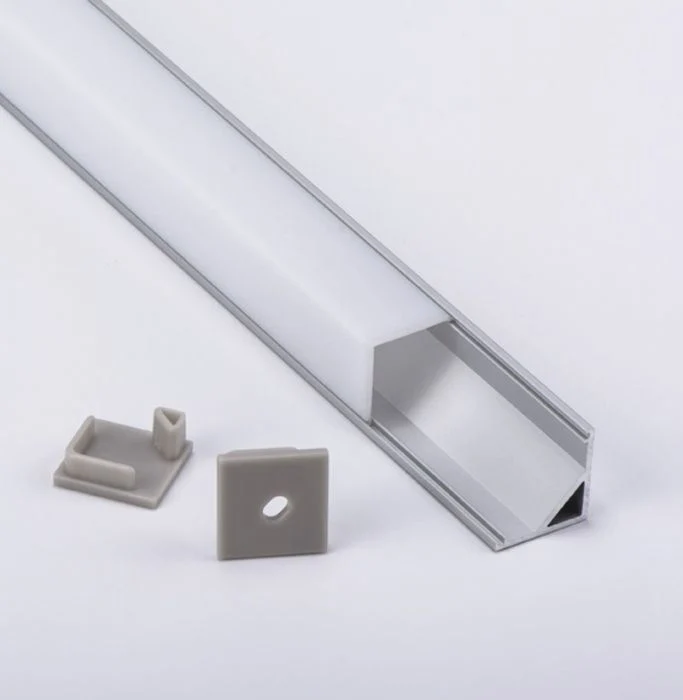

Aluminum profile / 39.4"(L) x 0.63"(W) x 0.63"( / PC diffused Cover, press down type / End cap with hole / End cap without hole / Material mounting clips. Use this Aluminum profile kit to mount LED strip lights in corners. The surface-mount LED channel comes with PC diffused Cover, press down type accessories that provides a professional mounting solution for flexible or rigid LED strip lights.
Description:
Corner Channel can be used for many applications but is especially useful for placing on 90º edges around kitchens, bathrooms, showrooms and more. These Corner Aluminium Channels are designed to house and protect our LED strips. They can be easily install into tight corners as well as preventing secondary refraction from reflective surfaces. They also work as a heat sink for them as well, which in turn will increase the LEDs lifetime as well as slowing down any brightness degradation over time. Each channel is available with a choice of either frosted or semi-transparent diffusers which help to diffuse the light from each LED in a uniform pattern and also work to prevent any glare or secondary refraction from occurring.
Product Details:
More Aluminum Profile Photos:
Aluminum profile / 3.28" (L)*0.63"(W)X0.63"(H) / PC diffused Cover, press down type / End cap with hole / End cap without hole / Material mounting clips. Use this Aluminum profile kit to mount LED strip lights in corners. The surface-mount LED channel comes with PC diffused Cover, press down type accessories that provides a professional mounting solution for flexible or rigid LED strip lights.
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
Features:
Aluminum profile / 39.4"(L) x 0.63"(W) x 0.63"( / PC diffused Cover, press down type / End cap with hole / End cap without hole / Material mounting clips. Use this Aluminum profile kit to mount LED strip lights in corners. The surface-mount LED channel comes with PC diffused Cover, press down type accessories that provides a professional mounting solution for flexible or rigid LED strip lights.
- This aluminium LED strip channel comes in a PC diffused cover along with end caps, mounting clips and screws and can perfectly fit most LED strip lights.
- This aluminium profile allows for different mounting options such as surface mounting, recess and corner mounting to achieve better lighting effect and heat dissipation.
- The PC diffuser in this aluminium channel/profile/extrusion enables light to be spread more evenly and uniformly.
- Two aluminium channels can be connected with the help of an extension connector for longer distance lighting projects.
- The product has been tested and certified (UL, CE and RoHS) to provide for complete safety of use.
- You have 5 years of warranty on this product.
Description:
Corner Channel can be used for many applications but is especially useful for placing on 90º edges around kitchens, bathrooms, showrooms and more. These Corner Aluminium Channels are designed to house and protect our LED strips. They can be easily install into tight corners as well as preventing secondary refraction from reflective surfaces. They also work as a heat sink for them as well, which in turn will increase the LEDs lifetime as well as slowing down any brightness degradation over time. Each channel is available with a choice of either frosted or semi-transparent diffusers which help to diffuse the light from each LED in a uniform pattern and also work to prevent any glare or secondary refraction from occurring.
Product Details:
| Product name | 1616 Aluminum LED Strip Channel - Surface Mount LED Extrusion |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |
| Size | L2000*W16*H16mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |
More Aluminum Profile Photos:
Aluminum profile / 3.28" (L)*0.63"(W)X0.63"(H) / PC diffused Cover, press down type / End cap with hole / End cap without hole / Material mounting clips. Use this Aluminum profile kit to mount LED strip lights in corners. The surface-mount LED channel comes with PC diffused Cover, press down type accessories that provides a professional mounting solution for flexible or rigid LED strip lights.
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
