D30 30mm 12V Ws2811 Clear Cover 3LED Pixel LED DOT Light


Basic Info.

Model NO.
5050
Lifespan
50000h
Warranty
2 Years
IP Rate
IP66, IP67, IP44, IP20, IP68
Color
White, Yellow, Blue, Green, Red, RGB
Transport Package
5m/Roll
Specification
CE, RoHS, FCC
Trademark
Monssen
Origin
Guangdong, Shenzhen
HS Code
94054090
Production Capacity
100000 Meters

Product Description

D30 30MM 12V WS2811 Clear Cover 3LED Pixel LED Dot Light

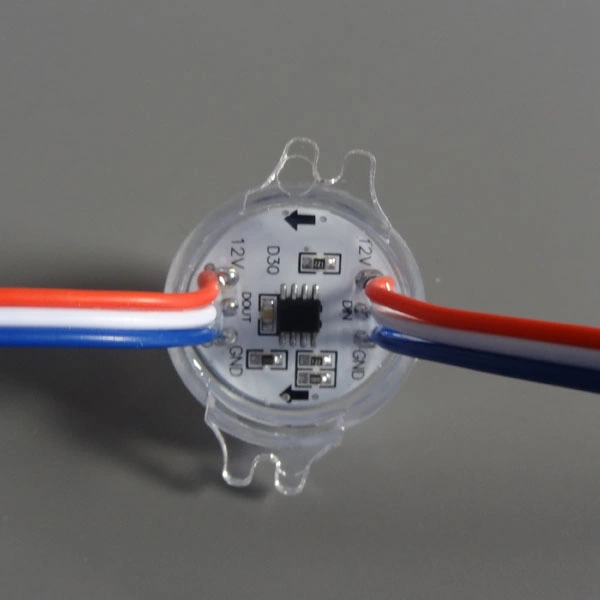

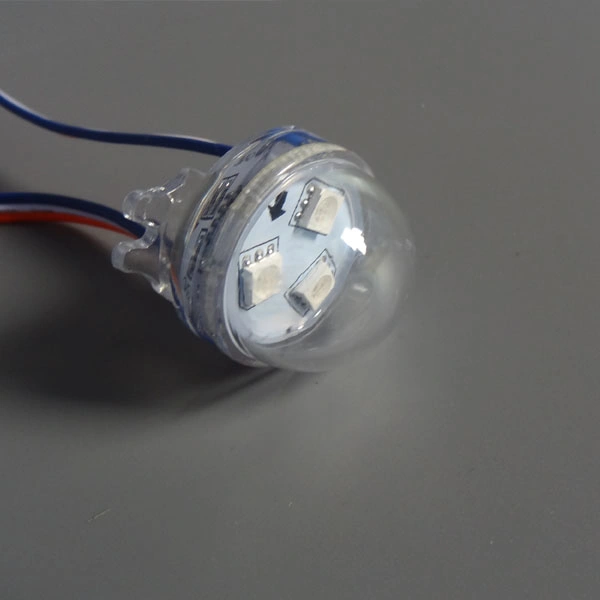

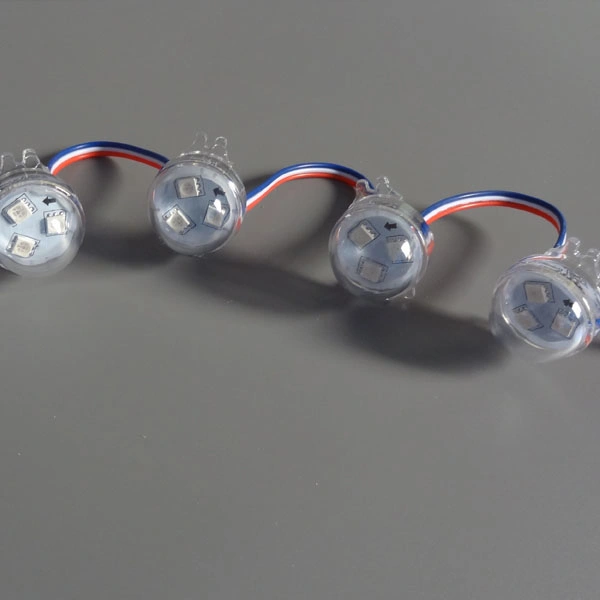

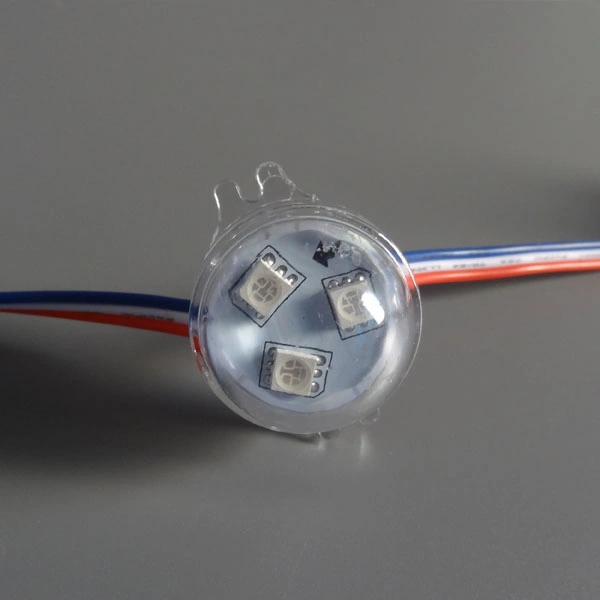

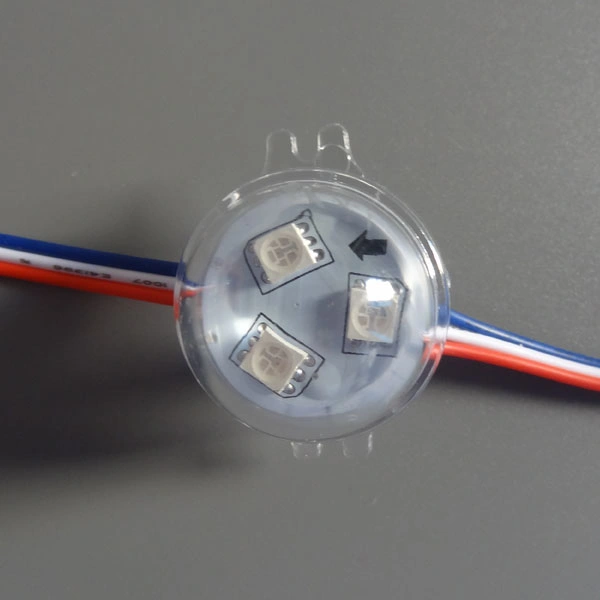

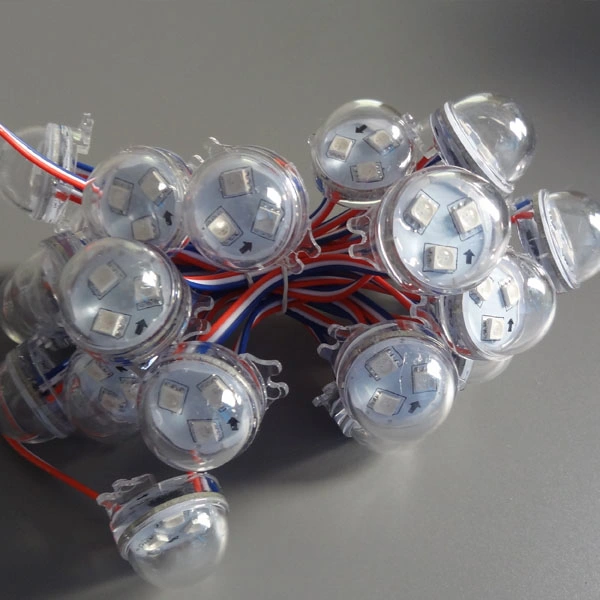

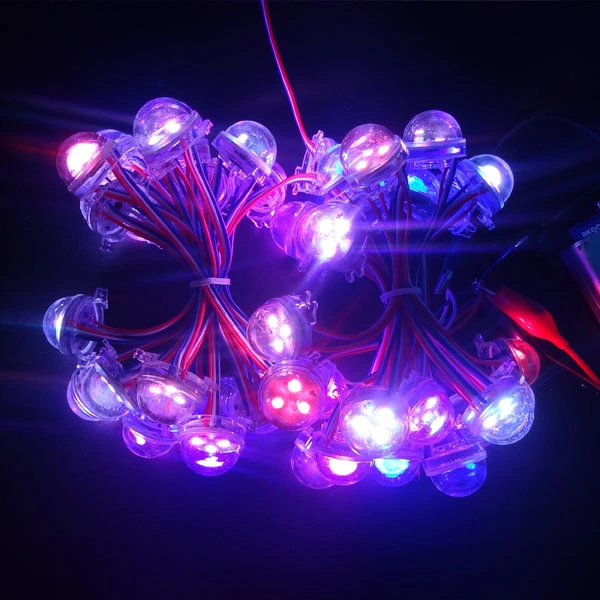

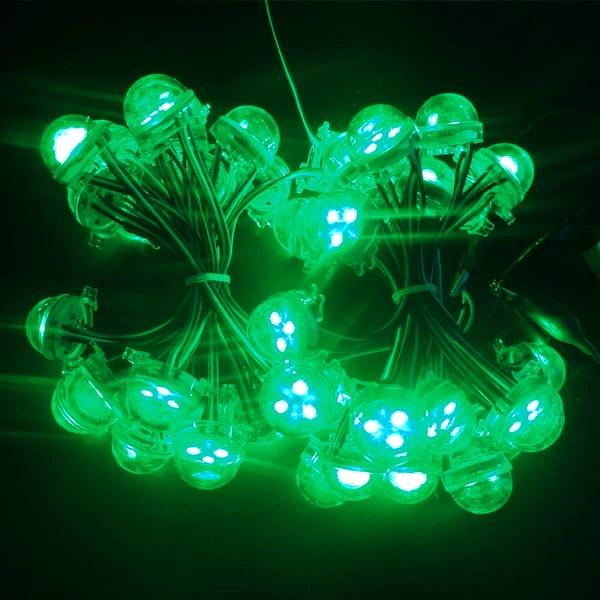

Specification/close photo of led pixel light.

 D30 30mm 12V Ws2811 Clear Cover 3LED Pixel LED DOT Light
D30 30mm 12V Ws2811 Clear Cover 3LED Pixel LED DOT Light
D30 30mm 12V Ws2811 Clear Cover 3LED Pixel LED DOT Light
D30 30mm 12V Ws2811 Clear Cover 3LED Pixel LED DOT Light


Other More List for the LED Strip Lighting.
Part NumbeColorLED ParameterWattageSizePowerOEM/Customize?
3528-30LEDR/G/B/Y/W/WWSMD3528/30LED2.4W/M8*1000MMDC12V/DC24VYES
3528-60LEDR/G/B/Y/W/WWSMD3528/60LED4.8W/M8*1000MMDC12V/DC24VYES
3528-120LEDR/G/B/Y/W/WWSMD3528/120LED9.6W/M8*1000MMDC12V/DC24VYES
5050-30LEDR/G/B/Y/W/WW/RGBSMD5050/30LED7.2W/M10*1000MMDC12V/DC24VYES
5050-60LEDR/G/B/Y/W/WW/RGBSMD5050/60LED14.4W/M10*1000MMDC12V/DC24VYES
5630-60           LEDwhiteSMD5630/60LED18W/M8*1000MMDC12V/DC24VYES
2835-60      LEDR/G/B/Y/W/WWSMD2835/60LED12W/M8*1000MMDC12V/DC24VYES
2835-120  LEDR/G/B/Y/W/WWSMD2835/120LED24W/M8*1000MMDC12V/DC24VYES
2835-240  LEDR/G/B/Y/W/WWSMD2835/240LED36W/M12*1000MMDC12V/DC24VYES
3014-60  LEDR/G/B/Y/W/WWSMD3014/60LED12W/M10*1000MMDC12V/DC24VYES
3014-120   LEDR/G/B/Y/W/WWSMD3014/120LED24W/M10*1000MMDC12V/DC24VYES


Digital RGB led strip (WS2011/WS2812B) Specification/Items:

Business model

Manufacture

Item Model

MS-WS2812B-60

LED Quantity

60PCS/M,300PCS/Reel

IC Type

WS2812B (IC Built in LED)

Wattage

18W/M

Pixel/m

60pixel/m,300pixel/reel

PCB Width

10mm

Length/Reel

5M

Working Voltage

DC5V

Package

Anti-Static Bag

Light Color

Multi-Color, digital RGB,Every LED individual Control

IP Grade

IP20:Non waterproof
IP65:Soft glue waterproof
IP67:Soft tube waterproof
IP68:Soft tube+glue waterproof

Glue Type

Expoy:Non-anti-UV,Stay clean for short time,smell
Silicone:Anti-UV,Stay clean,soft,smell-less
PU: Anti-UV,Stay clean,soft,smell-less

PCB Color

White ,Black

Certification

CE RoHS

Cut size

DC5V (every LED per cut),
DC12V (every 3LED per cut)

Installation

IP20 with 3M Adhesive tape on the back of PCB
IP65 with 3M Adhesive tape on the back of PCB
IP67 with plastic clip and screw
IP68 with plastic clip and screw



Many other types IC for choose


Addressable LED Strip with ,IC WS2811 WS2812,Individual Pixel Control
AMS-WS2812B-3030pcs SMD5050/M9W/MDC5V30 Pixel/MWS2812BDream Color RGBIP20 IP65 IP67 IP68
BMS -WS2811-3030pcs SMD5050/M7.2W/MDC12V10 Pixel/MWS2811Dream Color RGBIP20 IP65 IP67
CMS-WS2811-4848pcs SMD5050/M11.5W/MDC12V16 Pixel/MWS2811Dream Color RGBIP20 IP65 IP67
DMS-WS2811-6060pcs SMD5050/M14.4W/MDC12V20 Pixel/MWS2811Dream Color RGBIP20 IP65 IP67
EMS-WS2812B-6060pcs SMD5050/M18W/MDC5V60 Pixel/MWS2812BDream Color RGBIP20 IP65 IP67
FMS-WS2812B-144144pcs SMD5050/M43.2W/MDC5V144 Pixel/MWS2812BDream Color RGB

Low voltage DC input
Do not hot-line work
expansion screws should be used outdoor installation,so as not to fall off
Keep away from heat
The series less than 4m between lamps
Recommended power supply is more reasonable, which is generally 70-80% of rated power load, in order to avoid long-term high load power supply to damange the power supply and power

Why choose us?
1. We are Professional Led Lighting manufacturer in Shenzhen, China
2. Capacity: 2.5million pcs of storage items produced and exported annually
3. New items every quarter and quick response
4. Delivery: Punctual delivery for more than 95% orders
5. Approved by CE & RoHS.

Our Services
 1. Inquiry response: Your enquiries will be replied in 24 hours.
 2. Delivery time: Your shipment will be loaded in 3~15 days, depends on quantity.
 3. Payment term: T/T,L/C,D/P,D/A,Western union, Paypal.
 4. ODM order: Customized design is available.

Application :
1) Building (architecture or home) decoration, kitchen-cabinet lighting, under-cabinet lighting, and bathroom lighting,
2) Car decoration, coves, valences, doorways and other hard-to-light nooks and crannies.
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement signs backlighting
