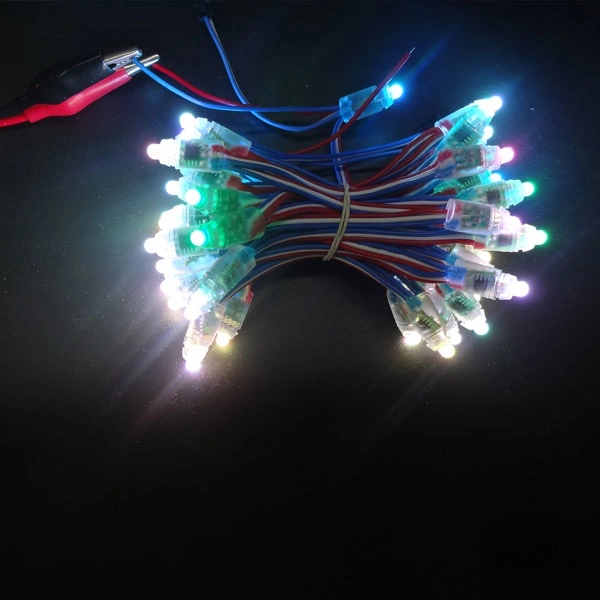

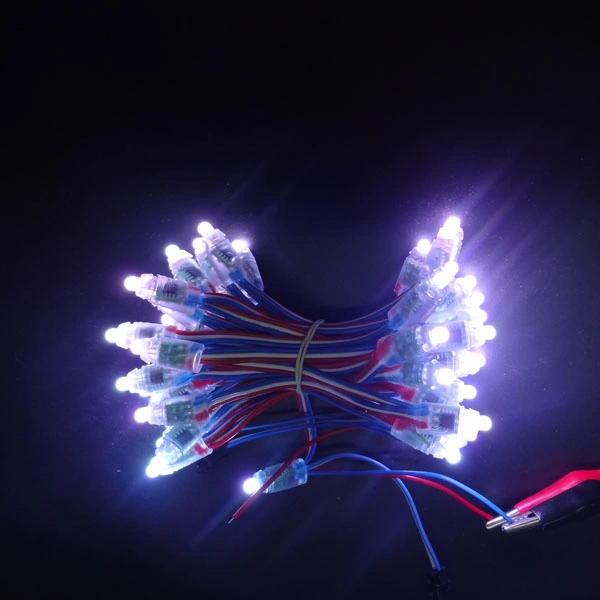

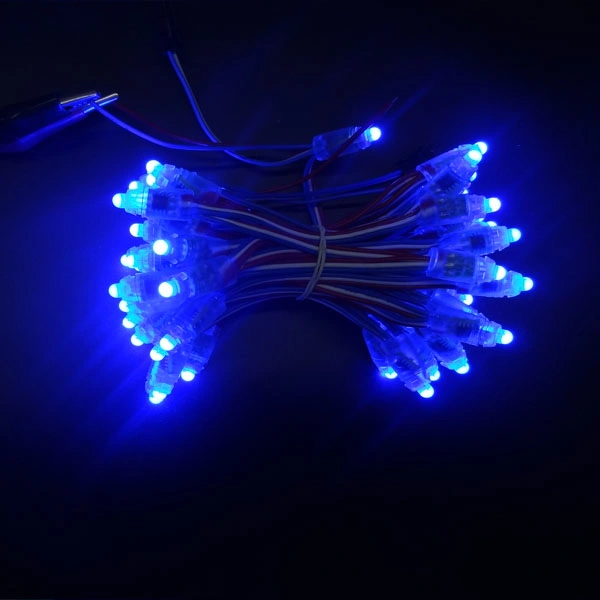

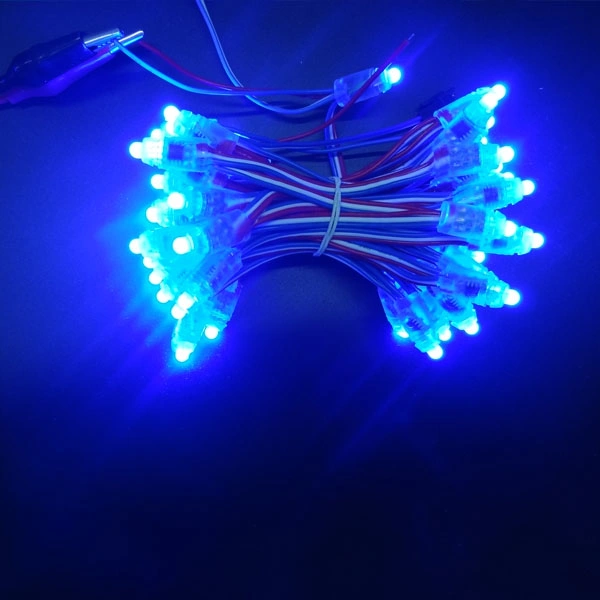

DC5V LED Ball Pixel Matrix DMX Module RGB Color Pixel Light 6803IC 0.72W


Basic Info.

Model NO.
5050
Lifespan
50000h
Warranty
2 Years
IP Rate
IP66, IP67, IP44, IP20, IP68
Color
White, Yellow, Blue, Green, Red, RGB
Quantity
50PS Per String
Transport Package
50PCS
Specification
CE, RoHS, FCC
Trademark
Monssen
Origin
Guangdong, Shenzhen
HS Code
94054090
Production Capacity
100000 Meters

Product Description

DC5V LED Ball Pixel Matrix DMX Module RGB Color Pixel Light 6803IC 0.72W

Specification:

CE/RoHS certificates.

12V/24V DC.  led pixel light has ws2811,ws2812b ect  led pixel light
3528 or 5050 led components.
Waterproof or non-waterproof are both availble.
No remark from customer,we will send DC12V basicly led strip for shippment

Features:
1. Every 3LEDs can be cut at marked intervals and can be rejoined. The normal packing is 5meters/reel.

2. Both waterproof (IP68 or IP65) or non-waterproof are available

3. Colors: Red, yellow, blue, green, white, warm white and RGB color are both available.

4. Low Power Consumption. These strips are extremely energy-efficient,
This low-voltage Strip produces little heat, very safe to use and easy to install, lifespan of over 50,000 hours, with CE& ROHS certificate that strictly ensures that no toxic materials were used in its manufacture.

5. The Flexible Strips have a 120° wide-angle beam that ensures they light evenly and do not cast shadows on surfaces and boasts a desirable seamless glow.

6. Easy installation. This LED tape comes with a 3M adhesive backing which allows easy mounting virtually anywhere. Because they can be cut, they fit well into installations and are perfect for use in display cases.

LED Strip List:
Part NumbeColorLED ParameterWattageSizePowerOEM/Customize?
3528-30LEDR/G/B/Y/W/WWSMD3528/30LED2.4W/M8*1000MMDC12V/DC24VYES
3528-60LEDR/G/B/Y/W/WWSMD3528/60LED4.8W/M8*1000MMDC12V/DC24VYES
3528-120LEDR/G/B/Y/W/WWSMD3528/120LED9.6W/M8*1000MMDC12V/DC24VYES
5050-30LEDR/G/B/Y/W/WW/RGBSMD5050/30LED7.2W/M10*1000MMDC12V/DC24VYES
5050-60LEDR/G/B/Y/W/WW/RGBSMD5050/60LED14.4W/M10*1000MMDC12V/DC24VYES
5630-60           LEDwhiteSMD5630/60LED18W/M8*1000MMDC12V/DC24VYES
2835-60      LEDR/G/B/Y/W/WWSMD2835/60LED12W/M8*1000MMDC12V/DC24VYES
2835-120  LEDR/G/B/Y/W/WWSMD2835/120LED24W/M8*1000MMDC12V/DC24VYES
2835-240  LEDR/G/B/Y/W/WWSMD2835/240LED36W/M12*1000MMDC12V/DC24VYES
3014-60  LEDR/G/B/Y/W/WWSMD3014/60LED12W/M10*1000MMDC12V/DC24VYES
3014-120   LEDR/G/B/Y/W/WWSMD3014/120LED24W/M10*1000MMDC12V/DC24VYES
