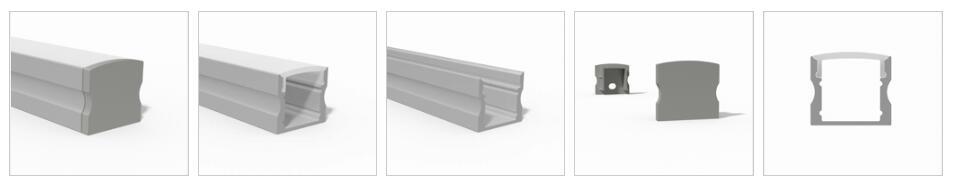

17mm Wide Low Spotting Aluminium Profile Channel for LED Strip
Basic Info.
Model NO.
Alu-TW-001
Dimensions
17.1*15.3mm
Accessories
Endcap, Mounting Clip
Cover
PMMA/PC, Opal/Semi-Clear/Milky/Clear
Color
Silver/White/Black/Ral
Material
6063 T3-T8 Aluminium Alloy
Max Flex Width
12mm
Pitch for Diffusion
180 LED
Product Name
LED Profile Surface
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description
Description:
A deeper version of our popular surface LED profile, providing more distance between the LED and diffuser thus reducing spotting and producing a smoother light appearance. This profile is best used by recessing into a 15mm deep groove to allow it to sit flush with the mounting surface.
Product Details:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
A deeper version of our popular surface LED profile, providing more distance between the LED and diffuser thus reducing spotting and producing a smoother light appearance. This profile is best used by recessing into a 15mm deep groove to allow it to sit flush with the mounting surface.
Product Details:
| Product name | 17mm Wide Low Spotting Aluminium Profile Channel For LED Strip |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |

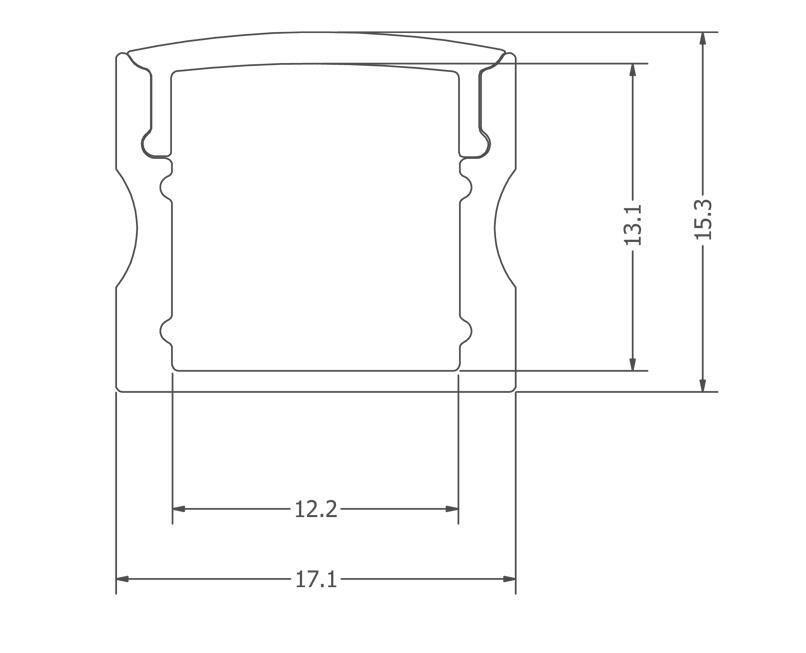

| Size | 17.1*15.3mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
