Alp6060 Round Hanging Aluminium LED Profile LED Alunimium Housing Mounting Channel for LED Strip Light Suspension LED Bar Light
Basic Info.
Model NO.
Alu-TW6060
Accessories
Suspended Wire + End Cap+Screws
Cover
Milky Cover / Clear Cover
Color
Silver/White/Black
Material
6063 T3-T8 Aluminium Alloy
Suitable for LED Strip
8mm, 10mm, 15mm, 20mm
Item
60mm Suspended LED Aluminium Profile
Transport Package
Clean PE Bag+EPE Foam+Carton
Specification
10 or more pieces packed in a carton box
Trademark
To be customized
Origin
China
HS Code
76042990
Production Capacity
50000meters/Week
Product Description
Description:

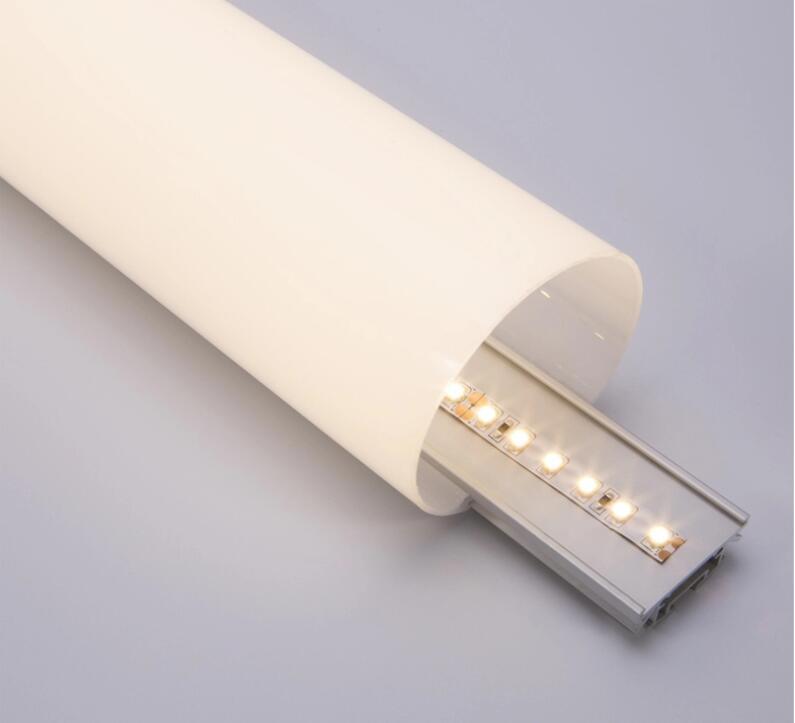

This large 60mm Diameter Circular Channel is ideal for creating bespoke and modern designs. They are designed to be hung using our suspension kit to create a stunning environment. With up to 32mm of internal width it is possible to house two LED strips side-by-side.
These aluminium channels not only act as a heat sink which reduces the light decay dramatically from the LEDs over their lifetime, but they also improve the visual finish of linear lighting installations by reducing spotting and manipulating the light output to suit an application.
By using the associated opal diffuser it is possible to soften the light output and reduce any glare. As the aluminium sits quite deep it should help to eliminate the spotting effect between the LEDs.
The channel is available off the shelf in lengths of 2 and 3 metres or in custom bespoke lengths, mitred and at an angle. Ecoled Energy are experienced in delivering a wide range of projects involving extrusion cut to bespoke sizes and have equipment that allows us to delivery large quantity of cut sizes quickly and efficiently.
Product Details:
Packaging Details:
EPE + Carton + Opp bag for Suspended Mounting Led Aluminum Profile
1m length carton: 107*20*16cm
2m length carton: 207*20*16cm
3m length carton: 207*20*16cm
Sample Test and OEM are Available
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
This large 60mm Diameter Circular Channel is ideal for creating bespoke and modern designs. They are designed to be hung using our suspension kit to create a stunning environment. With up to 32mm of internal width it is possible to house two LED strips side-by-side.
These aluminium channels not only act as a heat sink which reduces the light decay dramatically from the LEDs over their lifetime, but they also improve the visual finish of linear lighting installations by reducing spotting and manipulating the light output to suit an application.
By using the associated opal diffuser it is possible to soften the light output and reduce any glare. As the aluminium sits quite deep it should help to eliminate the spotting effect between the LEDs.
The channel is available off the shelf in lengths of 2 and 3 metres or in custom bespoke lengths, mitred and at an angle. Ecoled Energy are experienced in delivering a wide range of projects involving extrusion cut to bespoke sizes and have equipment that allows us to delivery large quantity of cut sizes quickly and efficiently.
Product Details:
| Product name | Customise Large Circular 60mm Suspended LED Aluminium Profile |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized |
| Length | 0.5~4meters |
| Color | Silver, White, Can be custom-made |
| OD | 60mm |
| Accessories | End caps, Clips |
| PC cover | Transparent/Diffuser/Opal |
Packaging Details:
EPE + Carton + Opp bag for Suspended Mounting Led Aluminum Profile
1m length carton: 107*20*16cm
2m length carton: 207*20*16cm
3m length carton: 207*20*16cm
Sample Test and OEM are Available
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
High Quality
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.
Certified & Patented Products
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.
Technical Support
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
