Low Profile Aluminum LED Strip Channel - Surface Mount LED Extrusion
Basic Info.
Product Description
Low Profile Aluminum LED Strip Channel - Surface Mount LED Extrusion

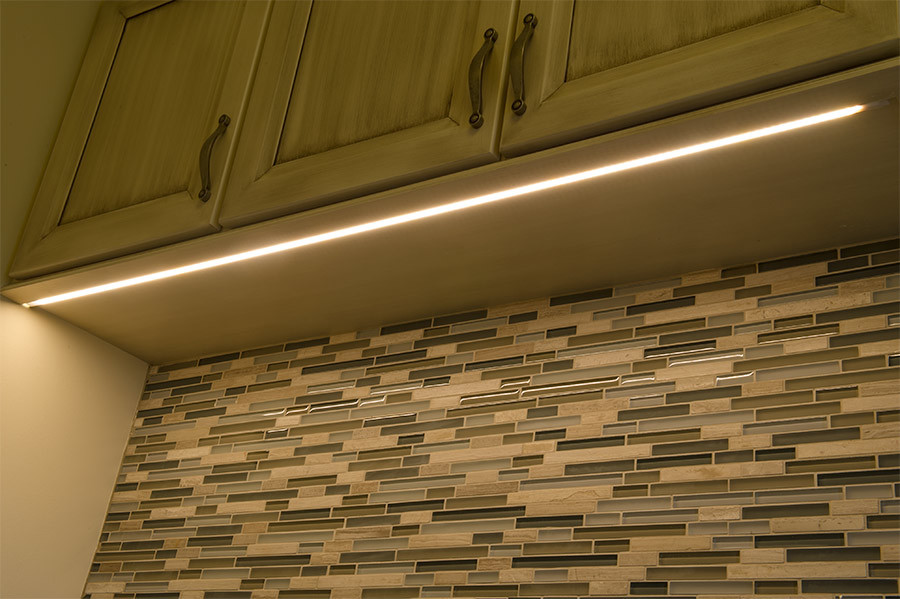

Our biggest selling aluminium channel, this 15 x 6mm profile is suitable for just about any project you can imagine. An ideal choice for display units, false ceilings, under kitchen units and more. Suitable for both dry and damp locations. These Recessed Flat Aluminium Channels allow for a flush install into grooves or furniture pieces as well as being designed to avoid any undesirable refraction from reflective surfaces. They also work as a heat sink for them as well, which in turn will increase the LEDs lifetime as well as slowing down any brightness degradation over time. Each channel is available with either a frosted, transparent or semi-transparent diffuser which is designed to diffuse the light from each LED in a uniform pattern and also prevents any glare or secondary refraction from occurring.These channels can help create sleek and completely bespoke LED strip lighting installations.
Specifications:

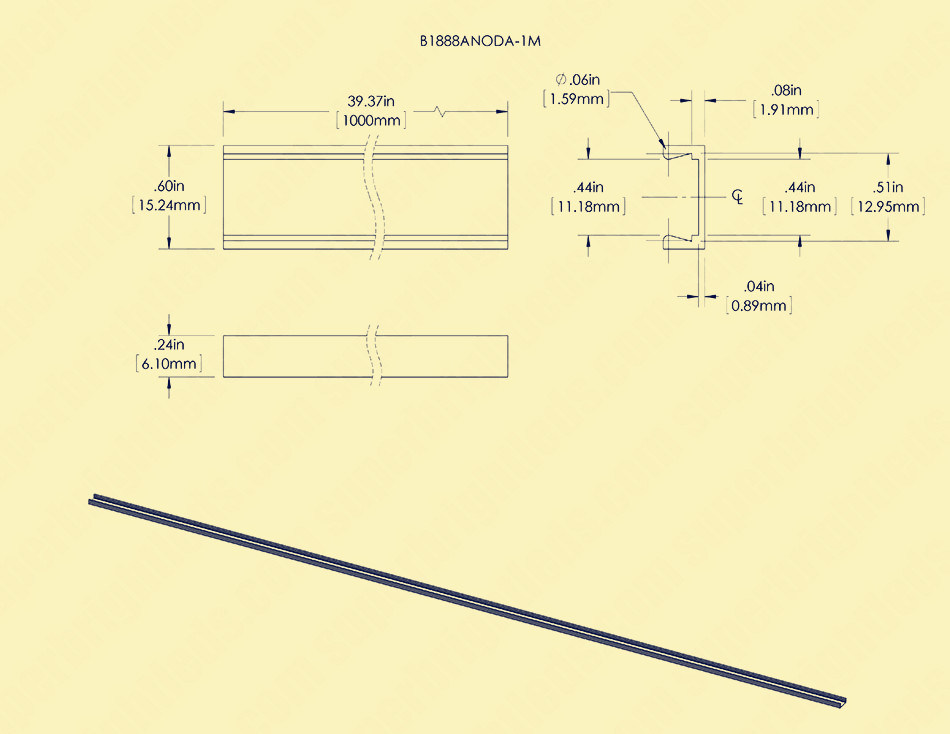

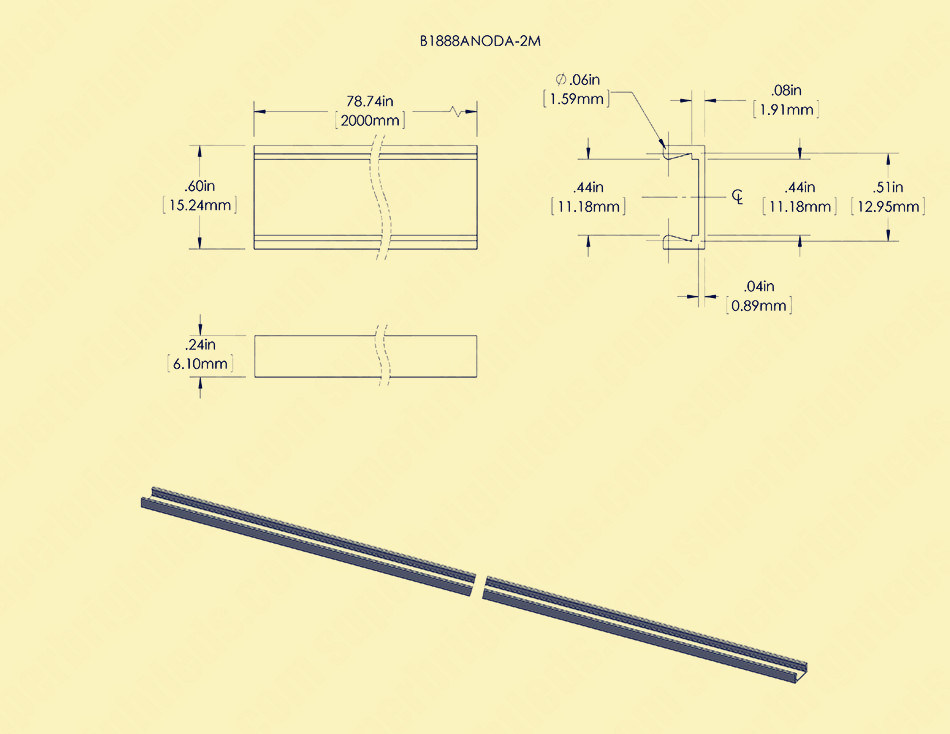

• Dimensions: 15.24mm x 6.1mm
• Max Tape Width: 11.2mm
• Material: Aluminium
• Anodised anti corrosive
• Frosted, semi-clear and transparent push in anti-shatter diffuser available

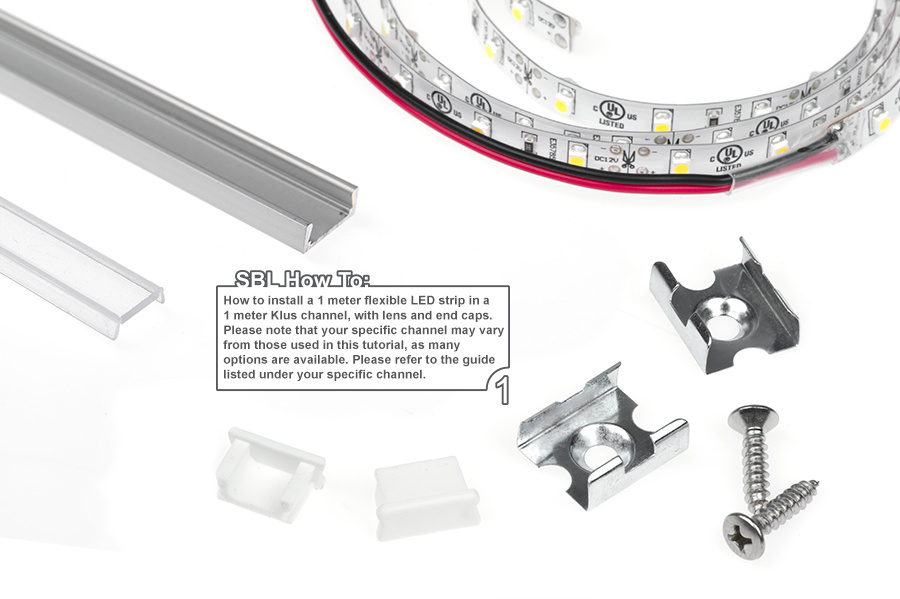

• End caps and clips available
Description:
Here we offer Aluminum LED profiles and diffuser lenses to help give your LED strip projects a more professional appearance. The aluminum channel or track keeps the strips hidden and provides a protective lens that shines an even light. Typically these LED strip housings are 2 meters long and come with a UV lens, end-caps, and mounting options.
Product Details:
| Product name | Low Profile Aluminum LED Strip Channel - Surface Mount LED Extrusion |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 2meters, or custom-made |
| Color | Silver, White, Can be custom-made |
| Size | L2000*W15.24*H6.1mm |
| Accessories | End caps, Clips |
| Diffuser material | Poly Carbonate, Opal |
More LED Aluminum Profile Photos:
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 aerial aluminum
6063 Aerial aluminum has good corrosion resistance and toughness. It's easy polishing, color firm and anodic oxidation. It is a kind of typical extrusion material. Widly used in building profiles, heat sink of lights for vehicles, platforms, furniture, lifts, fences etc.
2. PC cover: Mitsubishi PC from Japan
PC (Polycarbonat) is an amorphous thermoplastic resin with excellent electrical insulation, extensibility,
dimensional stability, and chemical corrosion resistance. It has high strength, heat resistance and cold
resistance. It also has the advantages of self-extinguishing, flame retardant, non toxic and colorable.
Its strength and toughness are very good.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
5. Suspended cable
Stainless steel suspended cable, standard length 1 meter.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
Why Ecoled Energy is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
Our extrusions are made with high quality double anodized aluminum, our covers are Certified. All products are released after meeting quality management examinations.
We are the innovators of LED extrusions on which we hold patents and continue to produce new products which meet the high expectations of our customers. We also offer covers which are certified for UV and fire rated and unmatched by the competition.
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
